FAR1518BB/24V
Radars FR & FAR series Ref : IMD03411000Radar Black Box IMO X-Band 12kW - ARPA 50 Targets - 96MN - 24V
PRICE : NCDescription
Black Box configuration
Flexible Black Box configuration based on the type of installation. Compatible with any XGA SXGA resolution monitor.
Omologato IMO
The FAR1518BB (12 kW) and FAR1528BB (25 kW) nautical radars provide excellent target resolution. They use a new latest generation antenna and are compliant with IMO Cat 2 and Cat 3 regulations. For units < 500GT (PPI 180 mm) the nautical radar is approved with Furuno MU-150HD monitor. For units between 500-10,000 GT (PPI 250 mm) the marine radar is type approved with MU-190.
Automatic Clutter Elimination (ACE)
This new feature allows the improvement of target visualization through a dedicated ACE command. Once activated the system automatically adjusts the clutter, gain, anti-sea and anti-rain filters according to the user preset (calm/rough sea/hard rain).
Fast Target Tracking (ARPA)
The target tracking function (ARPA) has been significantly improved by significantly reducing the target acquisition time. All the new FAR-15XX series marine radars feature advanced ARPA 50 fast tracking acquisition targets for the marine radar and is able to lock on to targets automatically in just a few seconds.

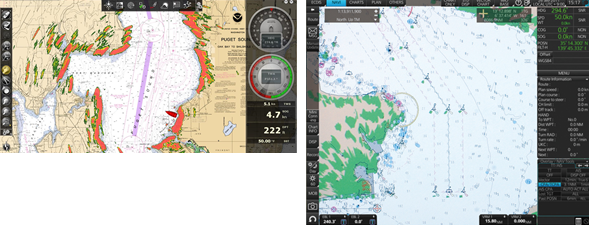

Radar overlay on ECDIS and MaxSea TZ
As for the FAR21x7 marine radar, it is possible to overlay the radar beat and ARPA targets also for the FAR-15X3 and FAR-15X8 models, both on the Furuno ECDIS and on the MaxSea navigation software (check compatible MaxSea versions). An ethernet connection between the two devices is sufficient.
* For connection Switching Hub HUB-100 is required.
Touch pad and mouse operation
Thanks to the completely redesigned control unit with integrated touch pad, you can perform operations on the machine easier and faster. There is also a trackball option that connects via USB.
TARGET ANALYZER™ (not-IMO)
The FAR-1518BB marine radar is equipped with the Target Analyzer™ function. Targets approaching your vessel change color if detected on a collision course turning red, while targets moving away or stationary are displayed in green*.
* required optional heading data
Product advantages
The FAR15x8 professional radar range presents real advances in terms of improvements in target detection as well as in the ease of use of its user interface.
Available in 26 or 48 rpm version -on request-.
Its moderate acquisition and operating costs make it an ideal category 2 and 3 radar for IMO vessels.
Features
The FAR1518BB RADAR is a SOLAS approved radar with a power of 12Kw in X band.
2 radar antennas available: 4 feet or 6.5 feet
Presented in Black Box version -without screen- it is possible to decline it in 2 screen sizes:
15 inch color with MU-150HD screen for vessels up to 500 GT - category 3
19 inch color with MU190 screen for vessels up to 10,000 GT - category 2
Integrated TARGET TRACKING function - 50 targets
Display of targets from an AIS - 300 targets
Possibility of interswitching 2 radars
Possibility of connection to an Ecdis for Overlay Radar
Performance Monitor PM32A optional for SOLAS vessels
In the box
1 X RPU-024 Processor
1 X RCU-028 Keypad with 5m cable
1 X 12kW Scanner
1 X User Guide
1 X Optional Radar Cable
Technical characteristics
Antenna Rotation Speed : 26 RPM
DVI OUTPUT : 1
Power : 12k W
Power input : 24/100-230 V
Range : 96 NM
Resolution : 1024 x 768 Pixels
RGB OUTPUT : YES
Size : 4/6.5/8 ft
Videos
Parts and accessories
| 00854246000 | CP03-28901 CONNECTEUR | 59,53 € With VAT (20%) |
| 00001363200 | PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT | NC |
| 00002515900 | PR-850A ALIMENTATORE 220VAC-24 CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT | NC |
| RCU-030 | RCU-030 TRACKBALL CONTROL UNIT USB PER ECDIS & RADAR - | NC |
| 00002871100 | RSB-121-100-1 AERIEN | 9 551,80 € With VAT (20%) |
| 00002871200 | RSB-120-101-1 AERIEN | 11 806,98 € With VAT (20%) |
| 00003043900 | RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP | NC |
| 00003044300 | RU-3423 ALIMENTATION AC/DC 110/220VCC --> 24VCC 7A AC110/220V | 1 099,00 € With VAT (20%) |
| 00003049700 | RU-3424 ALIMENTATION AC/DC 220VAC--->24V | 2 222,64 € With VAT (20%) |
| HUB-100 | HUB-100 SWITCHING HUB INTERSWITCH FAR-28X7 | NC |
| 00116788010 | LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 | 61,40 € With VAT (20%) |
| 00116789010 | MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB | 82,00 € With VAT (20%) |
| 00116790010 | LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 | 115,00 € With VAT (20%) |
| 00124051000 | FR-FTPC-CY CAVO LAN 10M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124052000 | FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124053000 | FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| PM32 | PERFORMANCE MONITOR FAR-15X8 PM-32A PER RADAR FAR-15x8 RSB-120/121 | NC |
| 00142341000 | CABLE ASSEMBLY RW-00225 L15M 03S002250 - Replaced by 00159598000 | 558,44 € With VAT (20%) |
| 00142342000 | RW-00225 CAVO ANT 20M FAR-1523 RW-00225 L20M 03S002250 | NC |
| 00113398010 | DVI-D/D S-LINK 10M CABLE EQUIPE DVI 10M 03S9658 | 829,00 € With VAT (20%) |
| 00149745000 | OP26-36 FLUSH MOUNT KIT MU-152 | NC |
| 00157811000 | TM000-FDX06_TXRX_30M DVI/USB_REPEATER 86S000050 | NC |
| 00157812000 | TM000-FDX06_RX DVI/USB_REPEATER 86S000050 | NC |
| 00157813000 | TM000-FDX06_TX DVI/USB_REPEATER 86S000050 | NC |
| 00157814000 | WO2511 30M CABLE ASSEMBLY 86S000050 | NC |
| 00157815000 | WO2512 50M CABLE ASSEMBLY 86S000050 | NC |
| 00157816000 | WO2513 100M CABLE ASSEMBLY 86S000050 | NC |
| 00157817000 | TM000-FDX06_TXRX_50M DVI/USB_REPEATER 86S000050 | NC |
| 00157818000 | TM000-FDX06_TXRX100M DVI/USB_REPEATER 86S000050 | NC |
| 00157819000 | TM000-FDX06_TXRX DVI/USB_REPEATER 86S000050 | NC |
| 00158956000 | TS-10-068 CABLE ASSEMBLY 86S000070 | NC |
| 00003782000 | PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM | NC |
| 00110362010 | RW-4864 *1M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00108085000 | OP26-4 KIT MONTAGGIO A INCASSO FLUSH MOUNT KIT MU-150HD - Replaced by 00149745000 | 337,63 € With VAT (20%) |
| 00002785800 | RCU-028 CONTROL UNIT | NC |
| 00017895210 | TS-10-066 CABLE ASSEMBLY 02S100580 | NC |
| 00015794310 | MJ-A3SPF0024-035C CABLE ASSEMBLY 08S0358-1 | NC |
| 00003042000 | RU-1803 700DOT8-6 AC440V-AC110V | 1 333,58 € With VAT (20%) |
| 00002871300 | RSB-121-101-1 SCANNER UNIT FAR-1427/1528BB | NC |
| 00110363010 | RW-4864 *5M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00113296010 | DVI-D/D S-LINK 5M DVI-D/D S-LINK 5M 03S9657-4 | NC |
| 00110365010 | RW-4864 *15M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00110364010 | RW-4864 *10M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00107722010 | 3COX-2P-6C CAVO VGA RGB 10M 3COX-2P-6C 10M 10S2195 | 168,00 € With VAT (20%) |
| 00107723010 | 3COX-2P-6C CAVO VGA RGB 5M 3COX-2P-6C 5M 10S2195 | 67,68 € With VAT (20%) |
| XN12AF | XN12AF ANTENNA RADIATOR 4FT PER FAR2XX7 E FAR-1518 4FT - Replaced by 00163360000 | NC |
| 00142346000 | RW-0030 CAVO ANT 30M FAR-15x8 RW-0030 L30M FAR-1518/1528 03S000300 | NC |
| 00142344000 | RW-0030 CAVO ANT 15M FAR-15x8 RW-0030 L15M FAR-1518/1528 03S000300 | NC |
| 00142345000 | RW-0030 CAVO ANT 20M FAR-15x8 RW-0030 L20M FAR-1518/1528 03S000300 | NC |
| XN20AF | RADIATEUR XN20AF 6.5FT (FR1510MK3/FR2115/FAR2117/FAR1518) | NC |
| XN13A | XN13A 6' (FR8065/FR8125/XCLASS/DRS12A) | 2 559,00 € With VAT (20%) |
| 00002871000 | RSB-120-100-1 AERIEN | NC |
| 00002874300 | RC28RP24-12KE2R2S-18 PROCESSEUR/UNITE DE CONTR� | NC |
| 00142868000 | 03P9547A(LF) SPU SPU ASSEMBLY - | 4 248,16 € With VAT (20%) |
| 00853472000 | 03-2119(REED SW-2P) CONNECTEUR SW-XH RSB-096/97/103 - Replaced by 00149916000 | 63,50 € With VAT (20%) |
| 00848718000 | RSB-0074/75/92/96/97 SCANNER COVER ASSEMBLY 103/109/120/121 | 608,45 € With VAT (20%) |
| 00145995000 | 03P9489A(LF) MD PRINTED CIRCUIT BOARD RTR-100 | 1 727,84 € With VAT (20%) |
| 00145992000 | 03P9506C(LF) RFC PRINTED CIRCUIT BOARD RTR-100 | 1 246,27 € With VAT (20%) |
| 00113016000 | 03P9347A(LF) BP PLATINE RSB-96/7/103/109 - Replaced by 00161669000 | 219,08 € With VAT (20%) |
| 00142857000 | RCU-028 PANEL PANEL ASSEMBLY - | 328,90 € With VAT (20%) |
| 00142315000 | 03P9488 RF TB PLATINE - Replaced by 00161671000 | 591,78 € With VAT (20%) |
| 00019012510 | S885026-1A-61 CARBON BRUSH CARBON BRUSH 03S002210 | 60,32 € With VAT (20%) |
| 00111087000 | RTR-100 TRANSCEIVER UNIT - | 6 229,74 € With VAT (20%) |
| OMFR-904 | MU FAR15x3_15x8_BB Manuel d'utilisation Fran�?a | NC |
