DRS4DL+

Radars Antennas Ref : IMD03660001

ANTENNA RADAR RADOME 4 kW

PRICE : 2 290,00 € With VAT (20%)


Description

Powerful yet compact 4 kW

Powerful yet compact 4 kW Radar Antenna with a range of 36 nm

No external power supply

No external power supply needed, just connect your DRS4DL to the main battery on your vessel

Ultra High Definition (UHD)

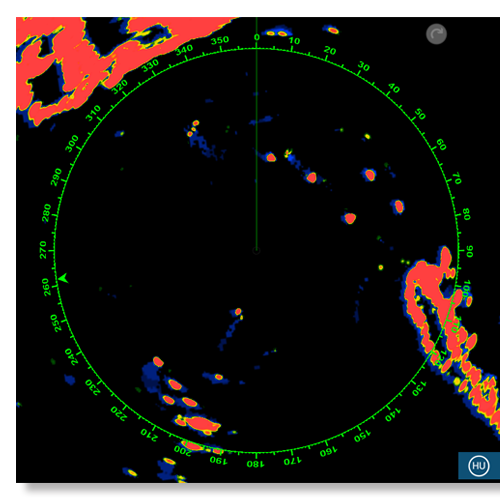

Digital Radar offers crystal clear, noise-free target presentation with automatic real-time digital signal processing

Real-time digital auto GAIN/SEA/RAIN

Controls to deliver noise-free radar presentation


Product advantages

  • Poweful yet compact 4kW with a range of 36 nm
  • No external power supply needed
  • Ultra High Definition (UHD)
  • Real-time digital auto GAIN/SEA/RAIN


Features

DRS4DL is a compact 19" radome Radar Antenna for use with the NavNet TZtouch/TZtouch2 series. A 4kW Radar with an effective range of 36nm that offers simple installation without the need to purchase a separate power supply unit.


In the box

1 X Radar sensor
1 X Installation Materials
1 X Template
Spare Parts

Technical characteristics

Antenna Rotation Speed : 24 RPM
Beam : 5.2 °
Functions : Head-up, North-up, Fast Target Tracking
Power : 4k W
Power input : 12/24 V
Range : 36 NM
Size : 19"
Type : Radome
Weight : 5.7 Kg


Parts and accessories

SW-SM-18-U SM-18-U PLATEFORME DE MAT POUR RADAR DE 38/45 CM 441,60 € With VAT (20%)
SW-PMA-57-M1 PMA-57-M1 SUPPORT MODULAIRE INCLINAISON ARRIERE DE 5 "127 MM, BASE 7""X 7""" 272,40 € With VAT (20%)
SW-ADA-R1 ADA-R1 PLATINE MODULAIRE TOUT RADOME ET RADAR POUTRE 182,98 € With VAT (20%)
00151260000 FRU-2P5S-FF-10M-A CABLE 10M ALIM/ETHERNET 120,00 € With VAT (20%)
RO-CMT1 COMPENSATEUR LIGNE DE FOI ROCMT1 POUR MAT ROTATIF 12VDC & 24VDC 1 374,00 € With VAT (20%)
00151262000 FRU-2P5S-FF-15M-A 150,00 € With VAT (20%)
00151264000 FRU-2P5S-FF-20M-A CABLE 20M ALIM/ETHERNET 20M PWR SUPPLY / LAN CABLE 200,00 € With VAT (20%)
00151268000 FRU-2P5S-FF-30M-A 290,00 € With VAT (20%)
00003495200 DRS4DL+E RADAR SENSOR NC
