FAR3220BB

Radars FR & FAR series

CHART RADAR BLACK BOX 25 kW X-BAND

Antenna Rotation Speed

Power

Range

Size

Description

Automatic Clutter Elimination (ACE)

Users can quickly adjust the radar image with a single action. When Automatic Clutter Elimination (ACE) function is activated, the system automatically adjusts the clutter reduction filter and gain control according to the sea and weather conditions selected (Calm/Rough Sea/Hard Rain).

Our advanced echo averaging architecture is also incorporated into Automatic Clutter Elimination (ACE) function. Users can avoid complicated adjustment processes, resulting in clear echo images.

Improved Target Tracking (TT) Function

  • Target acquisition takes only a few seconds
  • Acquired target does not jump to adjacent target
  • Reliable and stable tracking of high-speed and rapidly maneuvering vessels

Multifunction display (MFD) capability

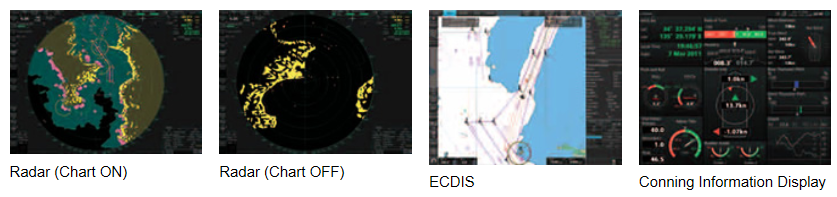

FURUNO offers workstations that combine flexibility and redundancy. Users may easily select ECDIS, Chart Radar, Conning display or Alert Management System at any multi-function display. Navigators will enjoy reduced workload and significant freedom to move about the bridge. All necessary information is available on a variety of displays and at locations that may be altered as required.
*Conning Information Display requires optional license key

Advanced User Inteface

The user interface of the Radar utilizes carefully organized operational tools: The Status bar and The InstantAccess bar™.
These operational tools deliver straightforward, task-based operation by which the operator can quickly perform tasks without having to navigate an intricate menu tree.


Product advantages

  • Solid State transceiver available for 30 kW
  • Automatic Clutter Elimination (ACE)
  • Multifunction display (MFD) capability
  • Advanced User Interface


Features

Newly designed antenna scanners to suppress the aerodynamic drag and prevent a spike in temperature
Less maintenance required through use of the DC brushless motor
Ethernet network link between antenna unit and below deck processor unit

The analog signals are converted into the digital signals within the antenna unit and sent to the below deck processor unit via Ethernet network. This network technology eliminates loss of signal gain between antenna unit and processor unit that may be seen in conventional Radar system.

Optional LAN Signal Converter enables users to extend the cable between antenna unit and processor unit or to utilize the existing cables when retrofitting


In the box

1 x Processer Unit

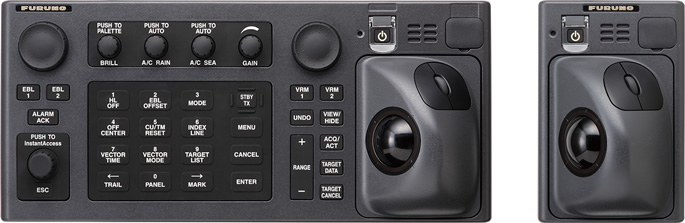

1 x Control Unit
1 x Scanner Unit

Technical characteristics

Antenna Rotation Speed : 24/42 RPM
DVI OUTPUT : 3
Power : 25k W
Power input : 100-230 V
Range : 96 NM
Resolution : 1280 x 1024/1600 x 1200/1920 x 1200 Pixels
Size : 4/6.5/8 ft


Parts and accessories

00002052000 MC-3020D ADATTATORE DIGITAL IN SENSOR ADAPTER DIGITAL IN - NC
00001363200 PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT NC
00125990000 S03-92-30(8P) SIGNAL CABLE ASSY. 03S001360 NC
00125989000 S03-92-15(8P) SIGNAL CABLE ASSY. 03S001360 NC
00002060000 RCU-026 TRACKBALL CONTROL UNIT - Replaced by 00002761900 NC
00002761900 RCU-026 CLAVIER TRACKBALL FAR3000/FMD32XX/FSS3BB NC
00002059000 RCU-024 ECDIS CONTROL UNIT - - Replaced by 00003763600 NC
00003551400 RCU-024B UNITE DE CONTROLE - Replaced by 00003763600 NC
00118748010 CABLE MC1.5-W-L1000 NC
00002052100 MC-3030D ADATTATOR DIGITAL OUT SENSOR ADAPTER DIGITAL OUT - NC
00118830000 OP24-32 CABLE ASSEMBLY NC
00113398010 DVI-D/D S-LINK 10M CABLE EQUIPE DVI 10M 774,00 € With VAT (20%)
00124051000 FR-FTPC-CY *10M* CABLE RESEAU LAN 4 PAIRES FEA2107<=>FAR2XX7 NC
00124052000 FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0 NC
00124053000 FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0 NC
00118626010 6TPSH-XH12X2-L5.0SP1 CABLE ASSEMBLY 24S103894 123,43 € With VAT (20%)
HUB-3000 HUB-3000 INTERSWITCH/HUB INTELLIGENT HUB - NC
00113296010 DVI-D/D S-LINK 5M CABLE EQUIPE DVI 5M NC
00125991000 S03-92-40(8P) SIGNAL CABLE ASSY. 03S001360 NC
00003041000 RU-6522 220V 50KHZ ABAISSEUR DE TENSION 220V 50HZ --> 200V 50HZ NC
00152270000 TET-16-045A-3(L10M) CABLE ASSEMBLY 24S104940 NC
00152272000 TET-16-045A-5(L30M) CABLE ASSEMBLY 24S104940 NC
00152269000 TET-16-045A-2(L5M) CABLE ASSEMBLY 24S104940 NC
WV-100 WAVE ANALYZER WV-100 WAVE ANALYZER SOFTWARE WAVE ANALYZER SOFTWARE NC
00152271000 TET-16-045A-4(L20M) CABLE ASSEMBLY 24S104940 NC
00158581000 OP03-265 PM MODIFICATION KIT NC
00003763600 RCU-024B CONTROL UNIT ECDIS FMD-3200 CON CAVO 20M NC
00002051800 MC-3000S ADATTATORE SERIALE SENSOR ADAPTER SERIAL - NC
HUB-100 HUB-100 SWITCHING HUB INTERSWITCH FAR-28X7 NC
00125432000 DE-ICER KIT FAR2218/FAR3210 OP03-226 DE-ICER KIT RSB-128 NC
00125441000 OP03-224-3 CABLE EXTENSION KIT RSB-128 NC
00125438000 CONVERTITORE LAN-COAX RSB-128 PER FAR-3210/3220 OP03-223-3 LAN SIGNAL CONVERT NC
00125433000 DE-ICER KIT FAR2238/FAR3230 OP03-227 DE-ICER KIT RSB-129/133 NC
00116789010 MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB 69,60 € With VAT (20%)
00118750010 MC1.5-W-L3000 CABLE 24S103881 NC
00118749010 MC1.5-W-L2000 CABLE 24S103881 NC
00118747010 MC1.5-W-L600 CABLE 24S103881 NC
00118628010 6TPSH-XH12X2-L20SP1 CABLE ASSEMBLY 24S103894 NC
00111675000 OP26-17 KIT MONTAGGIO INCASSO PER MU-231 MU-231 NC
00001627000 MU190HD bracket 1 074,00 € With VAT (20%)
00120415000 DVI-BNCX5-L2000 CABLE EQUIPE 24S104180 267,17 € With VAT (20%)
00003049700 RU-3424 ALIMENTATION AC/DC 220VAC--->24V 1 984,80 € With VAT (20%)
00003045300 RU-5466-1 ABAISSEUR DE TENSION AC440V-AC220V 1 372,80 € With VAT (20%)
00003045600 RU-5693 STEPUP TRANSFORMER UNIT AC110V-AC220V NC
00118627010 6TPSH-XH12X2-L10SP1 CABLE ASSEMBLY 24S103894 NC
00118632010 6TPSH-XH12X2-L10SP2 CABLE ASSEMBLY 24S103894 NC
00108093000 HOOD ASSEMBLY OP26-6 MU-190HD/190 723,60 € With VAT (20%)
00118633010 6TPSH-XH12X2-L20SP2 CABLE EQUIPE 20M FOR TRACKBALL RCU-026 655,20 € With VAT (20%)
00118629010 6TPSH-XH12X2-L30SP1 CABLE ASSEMBLY 24S103894 NC
00008335500 RJB-001 JUNCTION BOX RADAR PER CAVI RADAR - NC
00118634010 6TPSH-XH12X2-L30SP2 CABLE EQUIPE 30M FOR TRACKBALL RCU-026 1 055,88 € With VAT (20%)
00118631010 6TPSH-XH12X2-L5.0SP2 CABLE ASSEMBLY 24S103894 NC
00854246000 CP03-28901 CONNECTEUR NC
00125259000 DSUB9P-X2-A-L10M CABLE ASSEMBLY 24S104360 296,32 € With VAT (20%)
00125258000 DSUB9P-X2-A-L5M CABLE ASSEMBLY 24S104360 NC
00111674001 OP26-16 HOOD ASSEMBLY MU-231/NEW NC
00118826000 DSUB9P-X2-L5M CABLE ASSEMBLY 24S103930 NC
00120790000 DSUB9P-X2-L10M-WP CABLE ASSEMBLY 24S10419 NC
00120807000 CP24-02920(30M) INSTALLATION MATERIALS NC
00120806000 CP24-02910(20M) INSTALLATION MATERIALS NC
00120805000 CP24-02900(10M) INSTALLATION MATERIALS NC
EXU00001007 CONNING FUNCTION ACTIVATE FILE NC
00120789000 DSUB9P-X2-L5M-WP CABLE ASSEMBLY 24S10419 NC
00125992000 S03-92-50(8P) SIGNAL CABLE ASSY. 03S001360 NC
00123532000 SP24-00801(BOX) SPARE PARTS HUB-3000 NC
00003044800 RU-3305 FOR DE-ICER TRANSFORMATEUR 220VAC-->100VAC 1 043,28 € With VAT (20%)
00003042000 RU-1803, 700DOT8-6 STEPDOWN TRANSFORMER UNIT AC440V-AC110V NC
00002051900 MC-3010A ADATTATORE ANALOGICO SENSOR ADAPTER ANALOG - NC
00003043900 RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP NC
00118827000 DSUB9P-X2-L10M CABLE ASSEMBLY 24S103930 NC
00111628000 OP26-12 KIT MONTAGGIO INCASSO PER MU-190 MU-190 224,64 € With VAT (20%)
00111673000 OP26-15 STAFFA PER MU-231 KIT MONTAGGIO SU STAFFA TAVOLO MU-231 NC
00111674000 OP26-16 HOOD ASSEMBLY MU-231 NC
XN24CF XN24CF 8FT (FAR32x0B) NC
00125983000 RW-00135-L15M CABLE EQUIPE SIGNAL 15M 03S001352 NC
00125986000 RW-00135 CAVO ANTENNA 30M PER FAR-2XX8 FAR-3000 03S001351 NC
00125987000 RW-00135-L40M CABLE EQUIPE SIGNAL 40M 03S001352 NC
00125988000 RW-00135 CAVO ANTENNA 50M PER FAR-2XX8 FAR-3000 03S001351 NC
XN12CF XN12CF 4FT (FAR32x0B/FAR22X8B) NC
XN20CF XN20CF 6.5FT (FAR32x0B) NC
