FELCOM250
INMARSAT Ref : IMD02983009Fleet Broad Band FURUNO - Standard IP 284 Kbps (Less antenna cable)
PRICE : NCDescription
A quantum leap in marine communications

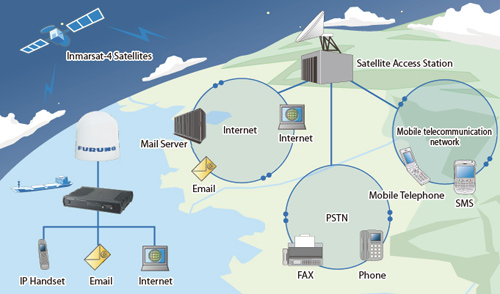

FELCOM250 is FURUNO's new Inmarsat FleetBroadband terminals, which delivers ship-to-shore/ ship-to-ship broadband communication of up to 284 kbps together with voice communication all at the same time by utilising the latest generation Inmarsat I-4 satellites.
FleetBroadband offers the data communication services with both shared bandwidth (Standard IP of Up to 284 kbps) and dedicated data rate (Streaming IP of up to 128 kbps). On top of that, the users can make use FAX communication (FAX is optional).
FELCOM250 will bring cost-effective broadband communication onboard the vessels for a variety of needs, for both operational and social purposes, including calling their friends and family back home while at sea.
Dual-configuration capable
When dual FleetBroadband terminals are installed onboard through a network gateway, supplied locally, network redundancy can be facilitated in order to deliver constant network availability. As a result, the network remains active, even if one FleetBroadband terminal fails or the line of sight to the sattelite is obstructed so that reception of signal from the satellite is hampered. Automatic switch-over from one terminal to another is achieved without experiencing any network failure.
Product advantages
A wide variety of maritime broadband communication services available.
Simultaneous access to voice and high-speed data communications.
Global coverage provided through three Inmarsat-4 satellites.(except for polar regions)
IP handset and IP-PBX incorporated.
Multiple IP handsets can be incorporated into the network by using the switching hub.
Wireless IP phones can be utilized.(wireless LAN access points required)
No dedicated software required for configuration setup.(web server function incorporated)
Simplified installation through a compact antenna unit
Communication Unit supporting all major communication systems carrying ports to facilitate plug-and-play system integration.
Built-in NAT router facilitates smooth network integration to the Internet.
Incoming indicators available.(optional supply)
Features
Standard IP of Up to 284 kbps
Streaming IP 8, 16, 32, 64, 128 kbps
Voice : 4 kbps AMBE+2/3.1 kHz audio Simultaneously usable with packet data and IP services
FAX : Group 3 FAX via 3.1 kHz audio
SMS : Standard 3G (up to 160 characters)
In the box
1 XCOMMUNICATION UNIT FB-2000 WITH IP HANDSET FB-8000

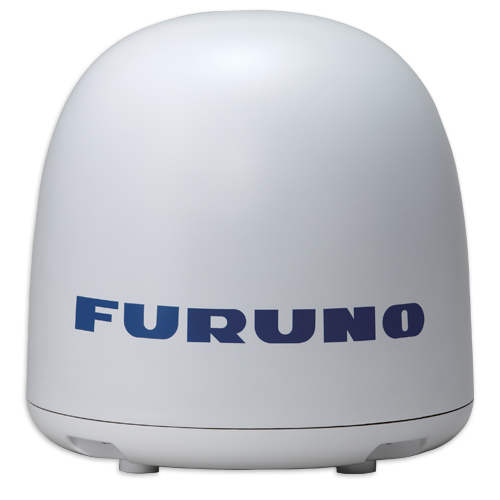

1 X ANTENNA UNIT FB-1250-A
ANTENNA CABLE NOT INCLUDED
Technical characteristics
Brand : FURUNO
Connection Tel/fax : 4
Diameter : 410 mm
Function : Data/Voix/Sms
Height : 349 mm
Integrated GPS : YES
Maxi speed of transfer data : 284 kbps
NMEA0183 : 1
Power input : 12/24 V
Type : FLEET BROAD BAND
Weight : 6.5 Kg
Parts and accessories
| 00001576300 | FB-3000 INDICATORE CHIAMATA IN ARRIVO | 799,00 € With VAT (20%) |
| RO-00018 | CABLE ANTENNE 25 M D:10.8MM AVEC CONNECTEUR | 310,00 € With VAT (20%) |
| RO-00017 | CABLE ANTENNE 15 M D:5.4MM AVEC CONNECTEUR | 102,00 € With VAT (20%) |
| 00124054000 | FR-FTPC-CY CAVO LAN 50M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124053000 | FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124052000 | FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124051000 | FR-FTPC-CY CAVO LAN 10M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00116790010 | LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 | 115,00 € With VAT (20%) |
| 00116789010 | MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB | 82,00 € With VAT (20%) |
| 00116788010 | LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 | 61,40 € With VAT (20%) |
| 00016714010 | JOINT BOX TL-CAT-012 - | 19,00 € With VAT (20%) |
| 00001576800 | FB-8000 CORNETTA IP CON CAVO SPIRALATO E BASE DI FISSAGGIO FELCOM500/250 | 1 529,00 € With VAT (20%) |
| 00001363200 | PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT | NC |
| 00116317010 | 8D-FB-CV CABLE EQUIPE 30M AVEC CONNECTEUR non rohs 20S104690 - Replaced by 00159594000 | 911,28 € With VAT (20%) |
| 00116319010 | 8D-FB-CV CAVO 50M ARMATO PER GPS/FELCOM/AIS 20S104690 - Replaced by 00159595000 | NC |
| 00116322010 | 8D-FB-CV 40M ANTENNA CABLE ASSEMBLY 20S104690 - Replaced by 00159593000 | 1 105,76 € With VAT (20%) |
| 00002540900 | FB-1250-D ANTENNE | NC |
| 00002351500 | FB-2000/8000-D-E MODEM + COMBINE IP | NC |
| 00108384100 | DOME VIDE FELCOM250 SANS BASE DOME VIDE SANS BASE | NC |
| 00110306000 | SP-2701 ATB+LNA ASSY FB-1250 SP | 8 003,88 € With VAT (20%) |
| 00110316000 | SP-2712 INTERFACE ASSY FB-1250 SP | 3 054,14 € With VAT (20%) |
| 00110318000 | SP-2714 SENSOR ASSY FB-1250 SP | 2 214,71 € With VAT (20%) |
| 00106975000 | FB-8000 CRADLE CRADLE - | 331,81 € With VAT (20%) |
| 00106967000 | 16P0275(LF) IF PRINTED CIRCUIT BOARD FB-2000-A/B | 1 754,30 € With VAT (20%) |
| 00106965000 | 16P0273(LF) HUB PLATINE HUB FB-2000-A/B - Replaced by 00160252000 | 3 074,26 € With VAT (20%) |
| 00015691810 | N-P-8DFB-1-CF COAXIAL CONNECTOR *N TYPE* - - Replaced by 00016792110 | 139,70 € With VAT (20%) |
