FSV75

Fishing sonars Ref : IMD02333001

The most advanced half-circle sonar 180kHz for shallow water detection with unparalleled 3D image detail

PRICE : NC

Description

3 TECHNIQUES TO NOT LOSE ANYTHING

  • A unique fan-shaped beam for a wide scanning area and high operating frequency (180kHZ)
    wider scanning area, from the sea surface to the sea floor, together with an impressive resolution that guarantees exceptional target separation, identification of fish near the bottom and better tracking accuracy
  • Improved and wider detection range
  • High sweep, tilt and transmission speed
    from port to starboard in just 8 seconds - ideal for tracking fast fish such as tuna and skipjack

MAXIMUM EFFICIENCY WITH 3D FUNCTIONS

FSV-75 support dual-monitor configuration to reach the maximum performance.
You can dedicate one display to the 3D functions, and the other for conventional representation.

Mainly, there are five kinds of 3D mode, detailed below

3D SWEEP CROSS-SECTION

Cross-section scanning with fixed tilt at 90° and auto sweep - useful for searching and identifying the position of fish schools.

3D TILT CROSS-SECTION

Fixed sweep direction & moving tilt angle automatically - useful for viewing the shape of the net and position of the schools of fish within it (particularly useful for purse seine technique)

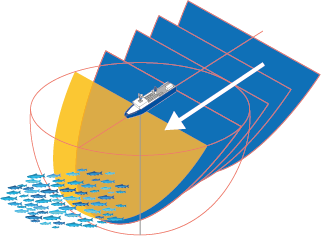

3D FORWARD DETECTION - HISTORY

Frontal scan, in front of the boat, with fixed sweep direction and tilt angle, with a representation of the history of previous scans behind the boat; useful for both analyzing the bottom profile and searching for schools of fish

3D DENSITY CALCULATIONS

creates an area, a virtual basket, and provides an estimate of the volume of fish within it (total weight of the fish and distribution); it helps to understand the right moment of fishing by maximizing time and efficiency

3D CROSS-SECTION SLICE

Allows you to view the echo of the cross section on a vertical or horizontal plane

STABILITY AND SAFETY

  • Tank guide - robust anti-vibration mechanism guarantees maximum performance and stability
  • Integrated motion sensor
  • Faster movement of hull unit (just 11 seconds to withdraw the transducer) combined with the position indicator for maximum safety
  • Possibility to stop the ascent of hull unit in any desired position
  • Internal SSD memory to ensure greater stability and durability

CUSTOMIZATION AND OPERABILITY

  • 10 buttons dedicated to operator functions, can be programmed according to needs
  • Dedicated buttons for Tilt and Sweep reset to 0°
  • Gain adjustable in 0.1 steps for a total of 100 levels
  • Pulse lenght and TX power adjustable by the user

ADDITIONAL FUNCTIONS

  • Specific functions for seabed detection includes:
    -seabed color ON/OFF: in order to make seabed in gray color
    -detection threshold: when the detected color level is higher than the threshold, it is recognized as seabed

  • Auto target lock
    Automatic tracking function of the fish school to never lose sight of it and get the best results
  • Save-Replay and sharing
    It is possible to save images and information to be able to review them later and analyze them with greater care.
    It is possible to save the settings on a USB key to be able to share and upload them to other ships in the fleet


Product advantages

The main strenght of FSV-75 is the high detection precision of fish close to the seabed.
In specific, in addition to conventional fish species, it has an impressive detection accuracy of fishes without the swim bladder.
The added value of FSV-75 is the detection accuracy of small school of fish near the seabed, that are hard to see with conventional full-circle scanning sonar; indeed at short range half-circle sonars can swipe faster than full-circle sonars.


Features

  • Scanning : Full digital beam forming
  • Frequency : 180 kHz
  • Basic Range : 50 - 2000m
  • Audio Search : 1 kHz , 10 W (optional speaker required)
  • Resolution : SXGA 1280×1024
  • Colors : 32 colors (sonar pictures), 6 colors (marks)
  • Display mode : Slant, Vertical combination scan, Echo sounder combination, Vertical and echo sounder combination
  • 3D Display mode : 3D single, 3D combination, 3D sounder combination
  • Ports :
    • Video output: 2 ch, HDMI, SXGA
    • NMEA0183 x 5 ch (V1.5/2.0/3.0/4.0/4.1)
    • External KP x 1 ch, current loop or contact closure
    • Voice output x 1 ch, 10 W, 4 ohms, monaural
    • Gyrocompass: 1 ch, AD-10
    • Echo sounder input: 1 ch, VI-1100A analog
    • Contact closure x 1 ch, for external switch
    • USB x USB2.0 x 2 ch, USB3.0 x 2 ch
    • LAN x 2 ch, Ethernet, 1000Base-T


In the box

1 x Processor unit
1 x Control unit
1 x Transceiver unit
1 x Hull unit
1 x Matching bos


Videos

Furuno Half-circle Sonar FSV-75_3D mode

Parts and accessories

00002302500 VI-1100A-E INTERFACCIA ECO INTERFACCIAMENTO ECOSCANDAGLIO INTERFACE UNIT EXTERNAL E/S NC
00003043900 RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP NC
00003625800 FSV-7504-E-5 REMOTE CONTROLLER NC
00003625900 FSV-7504-E-10 REMOTE CONTROLLER NC
00003626600 FSV-7501-E-5 CONTROL UNIT NC
00003629800 FSV-7540-B1 HULL UNIT LESS X-DCR NC
00003629900 FSV-7541-B1 HULL UNIT LESS X-DCR NC
00003630000 FSV-7590/7570-180-B1 TRANSDUCER NC
00003782000 PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM NC
00116597010 EXTERNAL LOUDSPEAKER SEM-21Q - - Replaced by 00120854000 149,23 € With VAT (20%)
00120854000 SEM-21Q ALTOPARLANTE ESTERNO CONNETTORE JACK - 90,00 € With VAT (20%)
00154228000 OP10-50 ATTACHMENT FLANGE 150 NC
00154229000 OP10-51 ATTACHMENT FLANGE 250 NC
00154230000 OP10-52 ATTACHMENT FLANGE 350 NC
00154231000 OP10-53 ATTACHMENT FLANGE 450 NC
00154459000 OP10-54 MAIN SHAFT REPLACEMENT KIT NC
00155154000 OP10-56 ATTACHMENT KIT FSV-75 NC
00155229000 10CA10110*5M* CABLE ASSEMBLY NC
00155231000 10CA10147*2M* CABLE ASSEMBLY NC
00155232000 10CA10147*5M* CABLE ASSEMBLY NC
EXU00001041 3D MODE UNLOCK CODE FSV-75 MODULE 3D FSV75 NC
SN300000086 FSV75-DRIVE-CHECKER FSV75-DRIVE-CHECKER NC
SN300000087 FSV75-TD-CHECKER FSV75-TD-CHECKER NC
SN356100463 FSV75-TD-CHECKER FSV75-TD-CHECKER NC
SN356100464 FSV75-DRIVE-CHECKER FSV75-DRIVE-CHECKER NC
00003624500 CP10-10110 CAVO LAN 15M FSV-75 TRA PROCESSORE-TRANSCEIVER PROCESSEUR->TRANSCEIVER NC
00003624400 CP10-10100 *10M* INSTALLATION MATERIALS PROCESSEUR->TRANSCEIVER NC
00003624600 CP10-10120 CAVO LAN 30M FSV-75 TRA PROCESSORE-TRANSCEIVER PROCESSEUR->TRANSCEIVER NC
00003624700 CP10-10130 *40M* INSTALLATION MATERIALS PROCESSEUR->TRANSCEIVER NC
00003624800 CP10-10140 *50M* INSTALLATION MATERIALS PROCESSEUR->TRANSCEIVER NC
00003628200 FSV-753-180-T HULL UNIT FSV-75 STROKE 800mm CON TANK IN ACCIAIO NC
00003628400 FSV-754-180-T HULL UNIT FSV-75 STROKE 1100mm CON TANK IN ACCIAIO NC
00003672200 CP10-10150 INSTALLATION MATERIALS NC
00119633010 10S2380 *10M* 5-PAIR CABLE 10S2380-1 NC
00119634010 CAVO 20M PROCES/TRANSCE FSV75 10S2380 PROCESSORE/TRANSCEIVER PER FSV-75 NC
00119635010 CAVO 30M PROCES/TRANSCE FSV75 10S2380 PROCESSORE/TRANSCEIVER PER FSV-75 NC
00119636010 10S2380 *40M* 5-PAIR CABLE 10S2380-1 NC
00119637010 10S2380 *50M* CABLE 5 PAIRES 10S2380-1 NC
00119638010 10S2380 *60M* 5-PAIR CABLE 10S2380-1 NC
00119639010 5-PAIR CABLE 10S2380 *100M* 10S2380-1 NC
00155230000 10CA10110*10M* CABLE ASSEMBLY NC
00155233000 10CA10147*10M* CABLE ASSEMBLY NC
00003624200 FSV-7550-180 MATCHING BOX NC
00003626700 FSV-7501-E-10 CONTROL UNIT NC
00003627200 FSV-7503 PROCESSOR UNIT NC
00003627700 FSV-751-E TRANSCEIVER UNIT NC
00100094000 FSV-84/L GASKET - 600,11 € With VAT (20%)
00108573000 26P0015(LF) PWR PRINTED CIRCUIT BOARD MU150HD/190RH/V 975,18 € With VAT (20%)
00108574000 26P0018(LF) CON PRINTED CIRCUIT BOARD 261,96 € With VAT (20%)
00116956000 MU3955N1 BALL TAS4728N1 SP 229,93 € With VAT (20%)
00116957000 MU3955N2 RING UNIT TAS4728N1 SP 224,11 € With VAT (20%)
00116958000 MU3955N3 BALL&RING UNIT TAS4728N1 SP 448,24 € With VAT (20%)
00123220000 05-085-1011/2/3/4 SWITCH COVER ASSEMBLY - 127,01 € With VAT (20%)
00141701000 03-177-2034/#6601-P KNOB (W/D SPRING) CHINA 60,32 € With VAT (20%)
00154571000 FSV-8470 UP LSW UP LIMIT SWITCH ASSY FSV-8470 800ST 858,49 € With VAT (20%)
00154572000 FSV-8480 UP LSW UP LIMIT SWITCH ASSY FSV-8480 1100ST 858,49 € With VAT (20%)
00154573000 FSV-8470 MID LSW MID LIMIT SWITCH ASSY FSV-8470 800ST 858,49 € With VAT (20%)
00154574000 FSV-8480 MID LSW MID LIMIT SWITCH ASSY FSV-8480 1100ST 858,49 € With VAT (20%)
00154575000 FSV-8470/80 DOWN LSW DOWN LIMIT SWITCH ASSY FSV-8470/8480 858,49 € With VAT (20%)
00154578000 FSV-8470 PUSH SW PUSH BUTTON SWITCH ASSY FSV-8470 800ST 844,61 € With VAT (20%)
00154589000 FSV-8470/8480 MOTOR RAISE/LOWER MOTOR ASSEMBLY FSV-8470/8480 8 694,49 € With VAT (20%)
00154598000 FSV-8470/80 BRAKE UNIT 3 878,64 € With VAT (20%)
00156448000 FSV-7570-180 TRANSDUCER ASSEMBLY 27 455,16 € With VAT (20%)
00156451000 CP10-10402 INSTALLATION MATERIALS FSV-7570/7590 647,34 € With VAT (20%)
00156452000 CP10-10403 INSTALLATION MATERIALS FSV-7580 2 443,32 € With VAT (20%)
00156453000 CP10-10404 INSTALLATION MATERIALS FSV-7570/7590 919,62 € With VAT (20%)
00156463000 80-0695 LEVER ASSEMBLY FSV7501/8501MK2 279,42 € With VAT (20%)
00156464000 10P7096(LF) SOKEY PRINTED CIRCUIT BOARD FSV-7501 1 077,98 € With VAT (20%)
00156471000 10P7104(LF) PSPK PRINTED CIRCUIT BOARD FSV-7503 291,06 € With VAT (20%)
00156472000 10P7099(LF) PIF PRINTED CIRCUIT BOARD FSV-7503 775,14 € With VAT (20%)
00156473000 -1050947 SSD FSV-7503 1 019,64 € With VAT (20%)
00156474000 -1050956 CFAST CARD WITH SOFTWARE FSV-7503 911,28 € With VAT (20%)
00156478000 PCOM-C605-FJ KIT CPU BOARD 86S00001 4 591,34 € With VAT (20%)
00156485000 CABLE-SATA(B786U340) CABLE ASSEMBLY 203,21 € With VAT (20%)
00156487000 10P7084(LF) TRFIL PRINTED CIRCUIT BOARD FSV-751 625,12 € With VAT (20%)
00156488000 10P7079(LF) TRCPU PRINTED CIRCUIT BOARD FSV-751 2 435,77 € With VAT (20%)
00156491000 10P7080(LF) TRX PRINTED CIRCUIT BOARD FSV-751 3 715,25 € With VAT (20%)
00156503000 10P7085(LF) TRPWR PRINTED CIRCUIT BOARD FSV-751 2 302,02 € With VAT (20%)
00156504000 10P7086(LF) TRBVLT PRINTED CIRCUIT BOARD FSV-751 2 161,79 € With VAT (20%)
00156522000 10P7081(LF) TRMOB PRINTED CIRCUIT BOARD FSV-751 2 430,74 € With VAT (20%)
00156523000 10P7083(LF) TRBVC PRINTED CIRCUIT BOARD FSV-751 2 087,70 € With VAT (20%)
00156526000 10P7087(LF) HCTL PRINTED CIRCUIT BOARD FSV-7530 4 358,76 € With VAT (20%)
00156527000 10P7088(LF) HMOT PRINTED CIRCUIT BOARD FSV-7530 1 868,08 € With VAT (20%)
00156528000 10P7089(LF) HPWR PRINTED CIRCUIT BOARD FSV-7530 1 693,44 € With VAT (20%)
00156531000 10P7090(LF) HFLT PRINTED CIRCUIT BOARD FSV-7530 1 197,44 € With VAT (20%)
00156532000 10P7092(LF) HDRV PRINTED CIRCUIT BOARD FSV-7530 1 770,18 € With VAT (20%)
00156537000 10P7093(LF) HMS PRINTED CIRCUIT BOARD FSV-7530 18 655,88 € With VAT (20%)
00156539000 10P7095(LF) MT PRINTED CIRCUIT BOARD FSV-7550 1 809,86 € With VAT (20%)
00156540000 FSV-7580 DOME ASSEMBLY 7 277,56 € With VAT (20%)
00156543000 FSV-7590/7570-180 COMPLETE SOUNDOME ASSEMBLY 49 056,84 € With VAT (20%)
00156556000 FSV-75-800ST MAIN SHAFT 8S75 6 686,98 € With VAT (20%)
00156558000 FSV-75-1100ST MAIN SHAFT 11S75 7 746,70 € With VAT (20%)
00156580000 10-086-5791/090-5525 INSTALLATION MATERIALS FSV-75 308,52 € With VAT (20%)
00156589000 FSV-7590 TRAIN MOTOR TRAIN MOTOR ASSY 852,94 € With VAT (20%)
00156607000 FSV-7590 RESOLVER TRAIN RESOLVER ASSY 3 954,05 € With VAT (20%)
00156609000 FSV-7590 MOTOR STEPPING MOTOR ASSY 2 069,17 € With VAT (20%)
00157581000 10-086-5712 2PCS/SET UPPER SEAL SUPPORT SET 950,18 € With VAT (20%)
00157747000 10-090-5566/67/68/71 SPRING SHAFT ASSEMBLY FSV-753/754 2 380,48 € With VAT (20%)
00158144000 FSV-7540/7541 DRIVE SHAFT KIT 952,96 € With VAT (20%)
00159277000 PCOM-C605-FJ KIT CPU BOARD W/O SATA CABLE 4 441,31 € With VAT (20%)
00159320000 CPU W/CFAST 75-STD CPU BOARD W/CFAST W/O SATA CABLE 5 220,02 € With VAT (20%)
00160383000 FSV-75-600ST MAIN SHAFT 6S75 6 579,80 € With VAT (20%)
00160386000 FSV-7539 DRIVE SHAFT 6S KIT 3 652,40 € With VAT (20%)
00160547000 03-177-2034 KNOB ASSEMBLY 60,32 € With VAT (20%)
00702340000 CP10-07004 INSTALLATION MATERIALS - 346,36 € With VAT (20%)
