SCX20
Compass Ref : IMD031520ABUnprecedented stability with Quad antenna Satellite compass NMEA2000
PRICE : 1 499,00 € With VAT (20%)Description
Quad-antenna design for extreme accuracy
Utilizing four separate GNSS Antennas for the ultimate in responsiveness, the SCX-20 set a new standard for reliable and accurate heading for all of your marine electronics. Traditionally, a Satellite Compass™ calculates heading using one baseline between two antennas; the SCX-20 four antennas can calculate heading information using any one of the six baselines drawn between the four antennas.
The unprecedented quad-antenna design of the SCX-20 makes it capable of calculating extremely accurate heading, pitch, roll, and heave information. It is the perfect heading solution for complex vessel installations where the view of satellites may sometimes be obstructed.
The unprecedented quad-antenna design of the SCX-20 makes it capable of calculating extremely accurate heading, pitch, roll, and heave information. It is the perfect heading solution for complex vessel installations where the view of satellites may sometimes be obstructed.
Relay Critical Data
Effortlessly connect with existing Furuno systems in order to elevate your awareness of own vessel and the surrounding area by displaying critical information across several products including NavNet TZtouch MFD’s, NAVpilot-300, FI-70, and GP-39! Initial setup can be done from NavNet series MFD, NAVpilot-300 and GP-39.
• 3-Axis Speed
• Pitch, Roll, Heave
• Rate of Turn (RoT)
• Heading (HDG)
Superior accuracy for all your sensors
The SCX-20 enhances the performance of on-board equipment such as Radar, Fish Finders, Sonar, and Autopilots. Accurate heading information empowers your NAVpilot to keep a better course, saving time, fuel, and money on every voyage; meanwhile, precise pitch, roll, and heave information stabilizes the display for many Furuno Fish Finders and Sonars, allowing for an accurate presentation even in the roughest of seas.

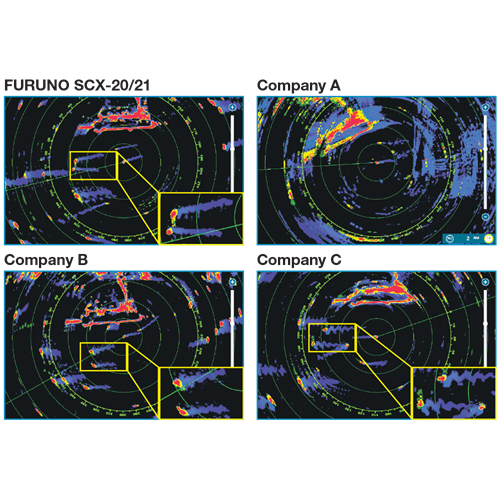

Radar echo trail zig-zag domination!
When connected to Furuno SCX20/21, the Radar’s echo trails hold steady and clearly depict an accurate echo trail thanks to the SCX20/21’s amazing accuracy. Company A’s satellite compass fails to uphold a steady heading, making echo trails virtually unintelligible. Company B’s heading accuracy fluctuates by +/- 3? with a slower update, causing an echo trail that has a wide zig-zag pattern. Company C’s heading accuracy fluctuates by +/- 5? with a faster update, causing an echo trail that is indistinguishable and confusing.
Product advantages
- Quad-antenna design for extreme accuracy
- Superior accuracy for all your sensors
- Relay Critical Data
- Perfect for NavNet TZtouch MFD, NAVpilot-300, and WASSP installations
- Outputs accurate Time, Position, Heading, COG/SOG, ROT, Roll/Pitch/Heave 3-Axis Speed, Air Temperature and Air Pressure data
- Unprecedented heading accuracy for Radars, Sonars, and Navigation
- Utilizes four Multi GNSS (GPS, QZSS, GLONASS, Galileo) antennas
- 1.0 degree heading accuracy, 0.02 knot speed accuracy
- Lightweight antenna - only 1.0kg!
Features
Frequency :
• 1575.42 MHz (GPS/Galileo/QZSS/SBAS)
• 1602.5625 MHz (GLONASS)
Tracking code : C/A (GPS/QZSS/SBAS), E1B (Galileo), L1OF (GLONASS)
Heading Accuracy: Heading/Roll/Pitch: 1.0° rms (static) 0.5° rms (dynamic)
Follow-up:45°/secSettling time : 60 seconds approx.
Position Accuracy:
• GPS: 5m approx. (2 drms, HDOP < 4)
• MSAS: 4m approx. (2 drms, HDOP < 4)
• WAAS: 3m approx. (2 drms, HDOP < 4)
Interface:1 Port NMEA2000
Temperature:25°C to +55°C (storage: -30°C to 70°C)
Waterproofing: IP56
Power Supply: 12 VDC: 0.2-0.1 A
In the box
1 X Antennas
1 X FRU-NMEA-PMMFF cable (6m)
1 X Roof or Pole Mount
Videos
Furuno SCX20 & SCX21 Satellite Compass
Furuno SCX20 & SCX21 Satellite Compass
Furuno SCX20 & SCX21 Satellite Compass
Parts and accessories
| 00155491000 | CP20-04602 ROOF MOUNT KIT CHINA | 222,26 € With VAT (20%) |
| 00155628000 | OP20-54 BIRD-REPELLENT FIXTURE | 63,50 € With VAT (20%) |
| 00155626000 | OP20-52 HOSE CLAMP(LARGE) | 101,60 € With VAT (20%) |
| 00155624000 | KIT MONTAGG SU ALBERO SCX20/21 CP20-04605 MAST MOUNTING KIT SCX-20/21 | 401,66 € With VAT (20%) |
| 00155620000 | CP20-04603 POLE MOUNT KIT Kit montage sur matereau EN STANDARD AVEC SCX21 - Replaced by 00155492000 | 199,00 € With VAT (20%) |
| 00155617000 | CP20-04602 ROOF MOUNT KIT SCX-20 - Replaced by | 222,26 € With VAT (20%) |
| 00155557000 | CAVO INTERF 30M SC-33/GS-100 FRU-CF-F30M PER SC-33 E GS-100 | 288,14 € With VAT (20%) |
| 00155556000 | FRU-CF-F15M CABLE ASSEMBLY 20S105090 | 171,46 € With VAT (20%) |
| 00155492000 | CP20-04603 POLE MOUNT KIT Kit montage sur matereau EN STANDARD AVEC SCX21 | 219,00 € With VAT (20%) |
| 00153308000 | FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI | NC |
| 00153307000 | FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 | NC |
| 00153306000 | CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI | NC |
| 00150707000 | FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 | 41,00 € With VAT (20%) |
| 00150706000 | TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 | 41,00 € With VAT (20%) |
| 00150705000 | FRU-MM1MF1MF1001 MICRO T-CONNECTOR MASCHIO/FEMMINA/FEMMINA | 82,00 € With VAT (20%) |
| 00111191010 | NO.13-QA330 RIGHT ANGLE MOUNTING BASE 22S0286 | NC |
| 00155632000 | OP20-53 SNOW COVER KIT | 816,82 € With VAT (20%) |
| 00003675200 | SCX-20-R SATELLITE COMPASS CHINA | NC |
| 00157588000 | 20P8235A(LF) MAIN PRINTED CIRCUIT BOARD SCX-20 - Replaced by 00162396000 | 814,04 € With VAT (20%) |
| 00157629000 | SCX-20/21 ANTENNA ANTENNA ASSEMBLY - Replaced by 00162398000 | 127,01 € With VAT (20%) |
| 00157630000 | SCX-20/21 ANT CASE ANTENNA CASE ASSEMBLY | 139,70 € With VAT (20%) |
| 00162396000 | 20P8235A(LF) MAIN PRINTED CIRCUIT BOARD CHINA SCX-20 | 814,04 € With VAT (20%) |
| 00162398000 | SCX-20/21 ANTENNA ANTENNA ASSEMBLY CHINA | 127,01 € With VAT (20%) |
