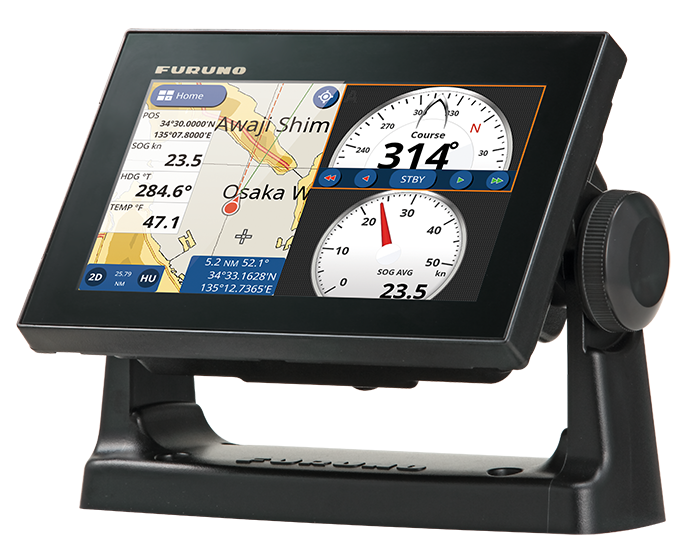

GP-1871F_left

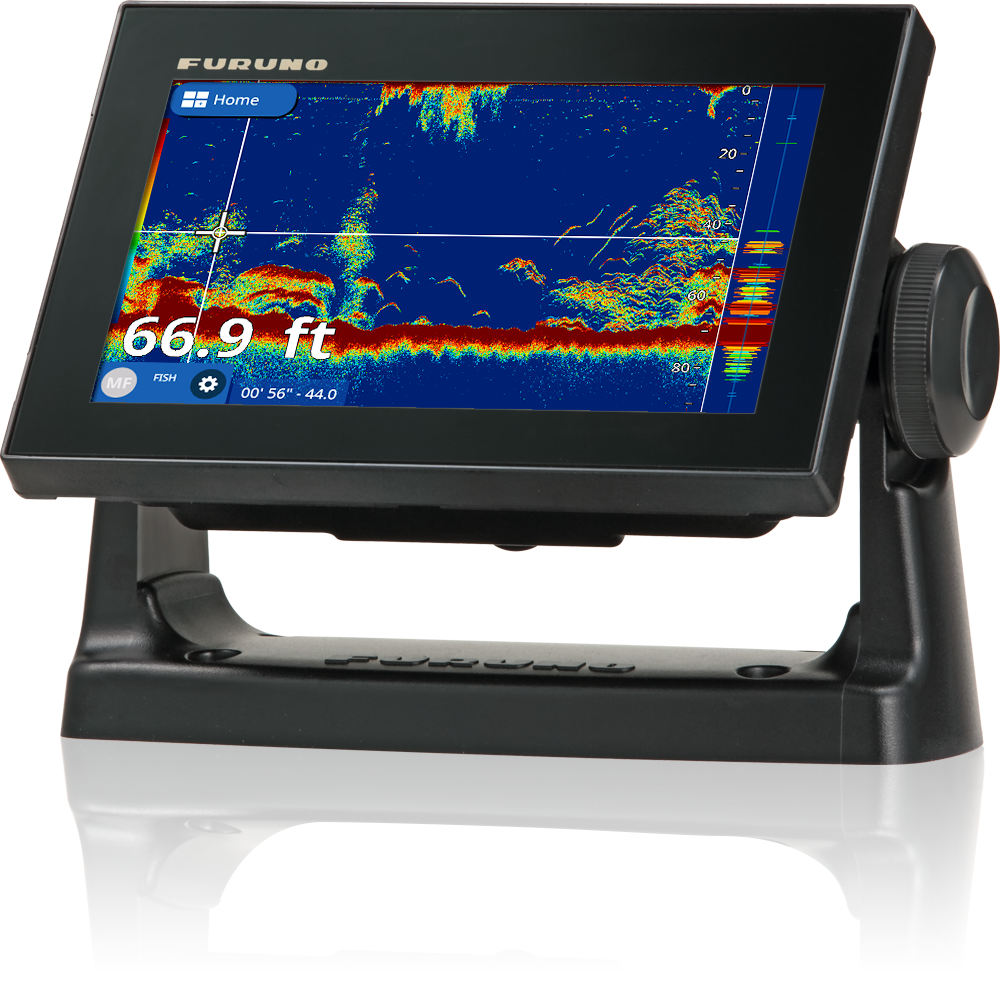

GP1871F-Bracket-Left-Reflection

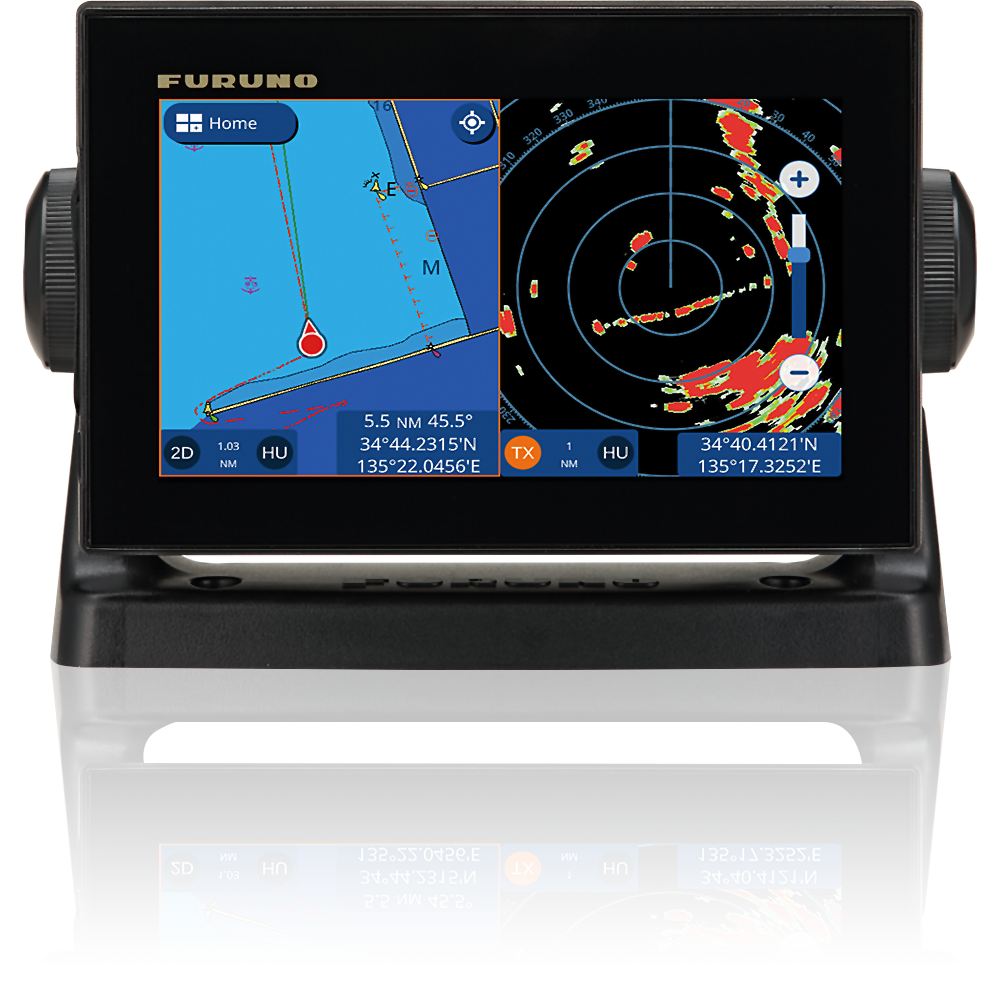

GP1871F-BracketMount-Front-Reflection

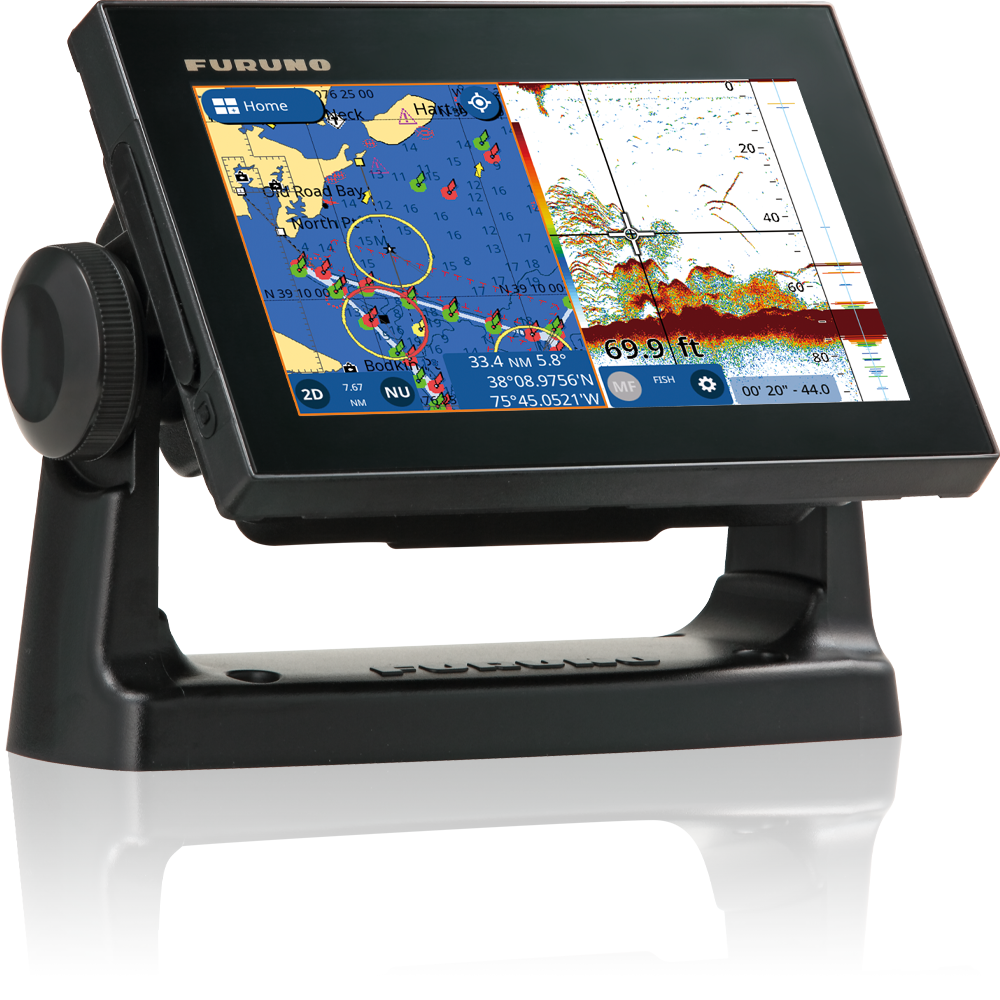

GP1871F-Bracket-Right-Reflection

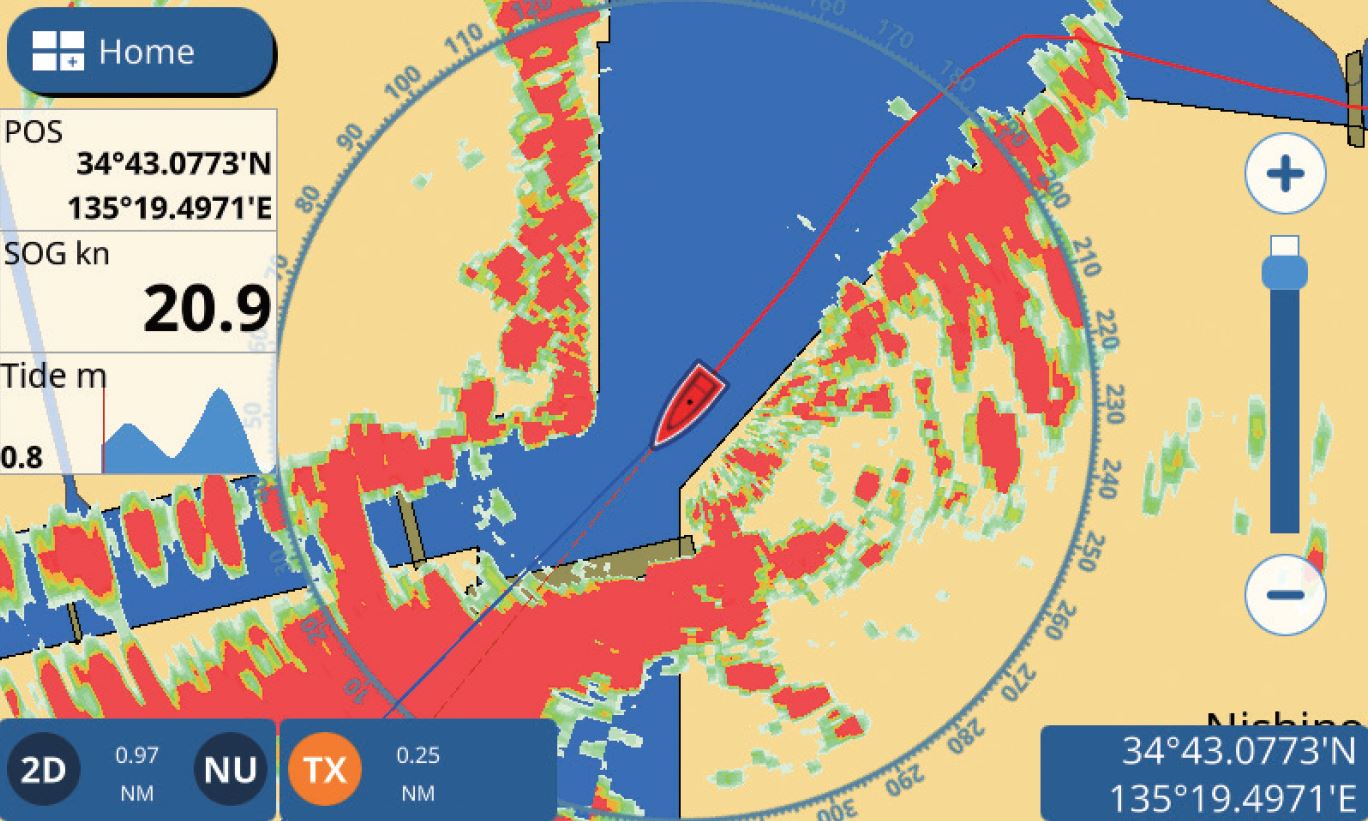

OVERLAY RADAR

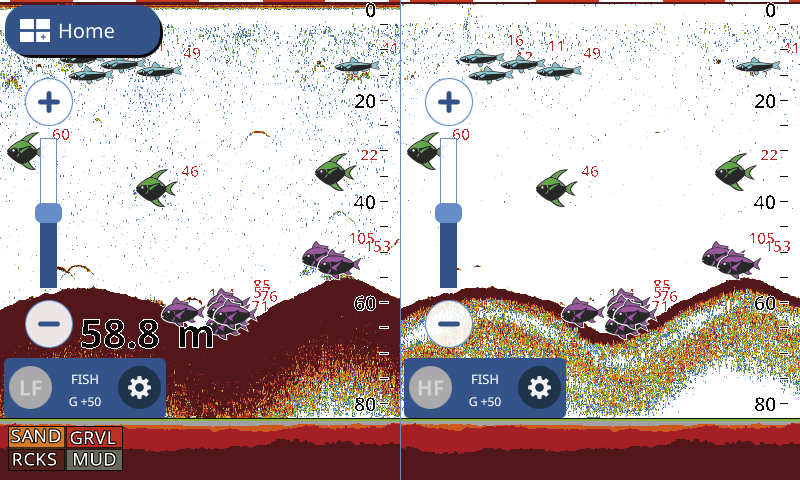

Accu-fish

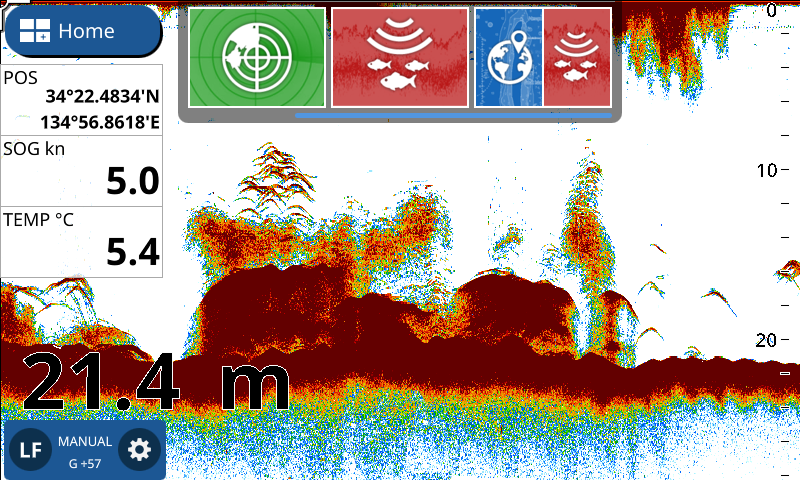

TruEcho CHIRP + Quick Page

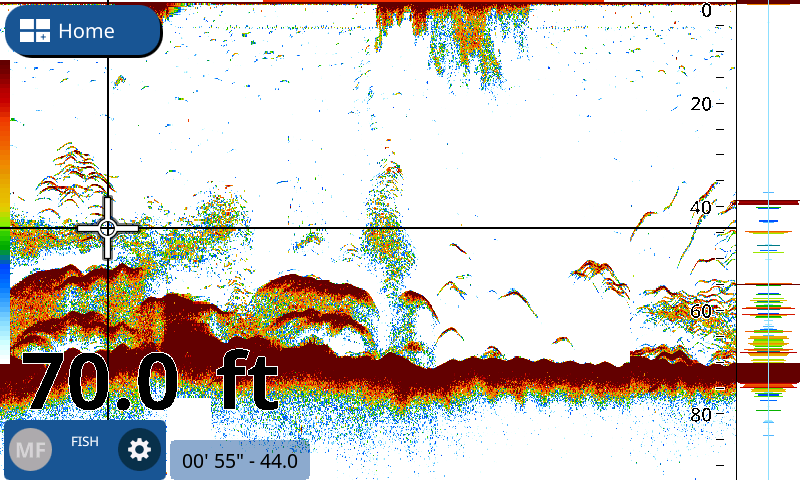

Chirp

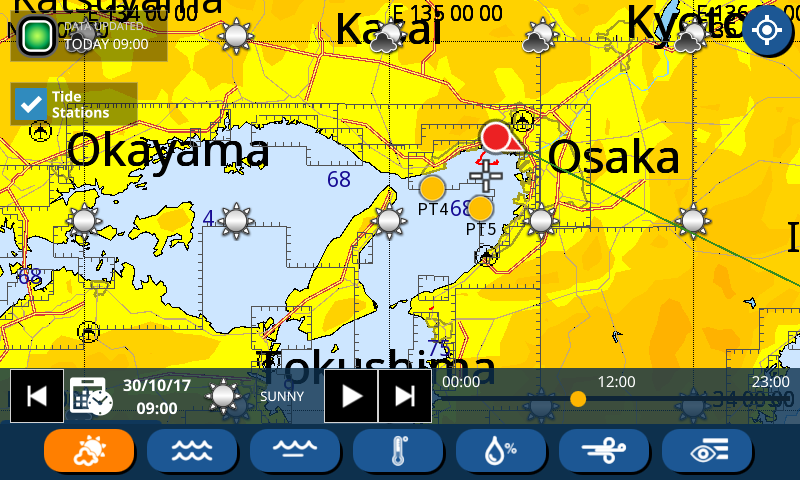

C-map C-Weather

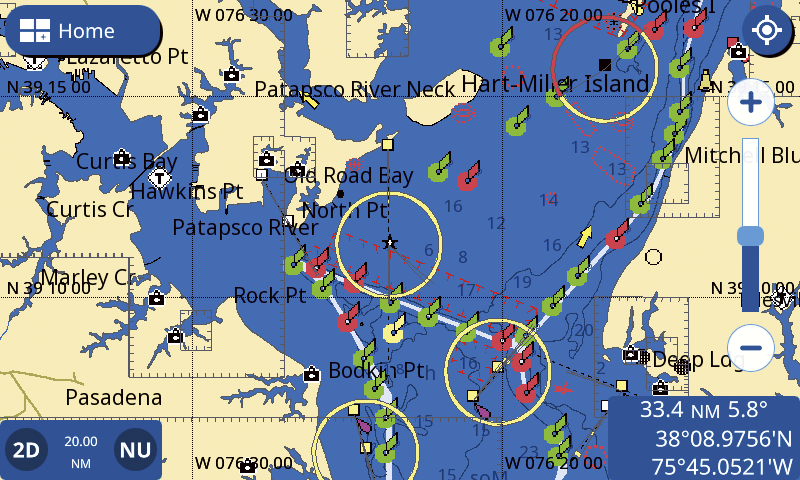

Cmap
cmap2

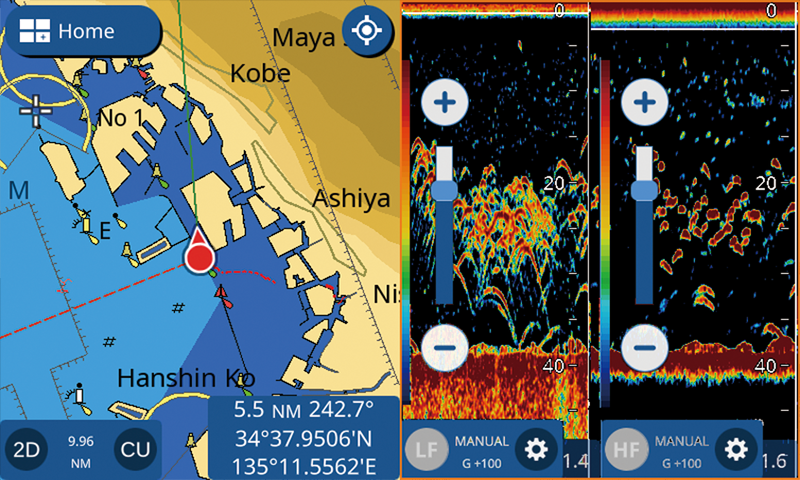

Dual Screen Chart Plotter Dual Frequency FISH FINDER

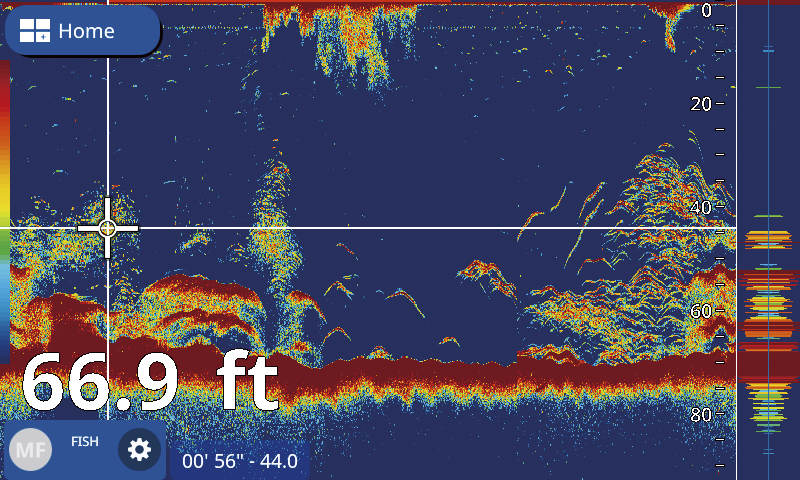

fish-finder

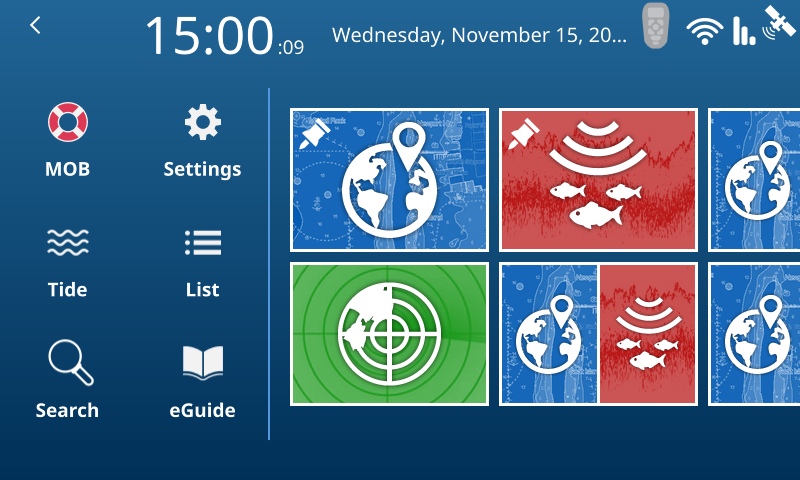

MENU GENERAL

GP1871F

GPS/WAAS CHART PLOTTER Ref : GP-1871F

7" Multi Touch GPS/WAAS Chart Plotter with CHIRP and Conventional Fish Finder

Description

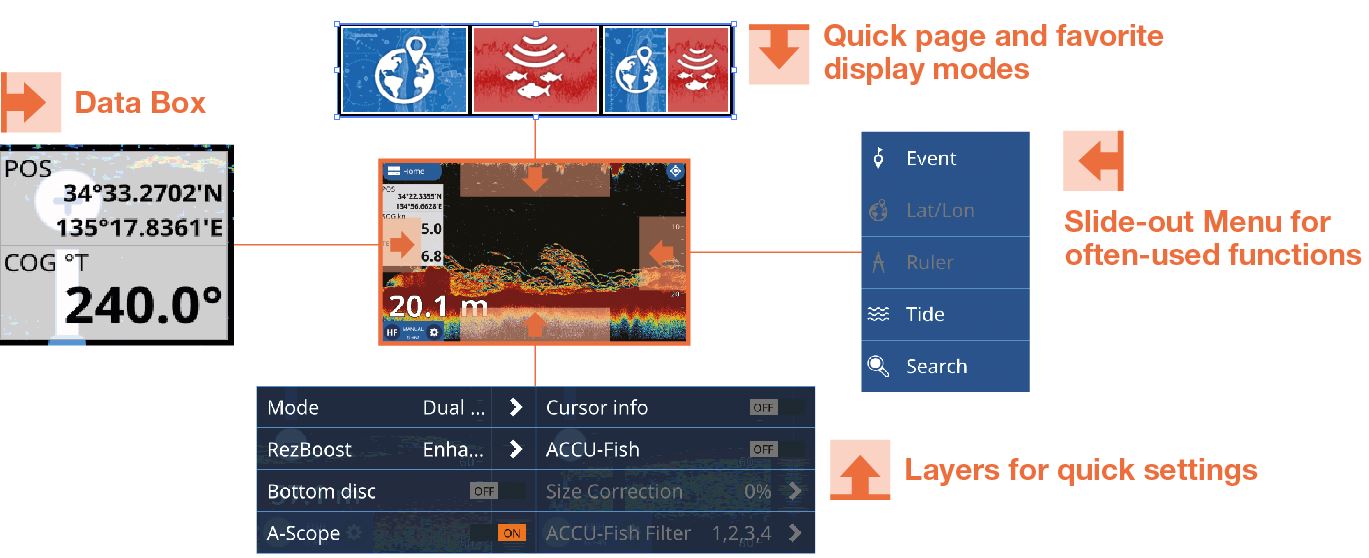

Multi Touch interface

Convenient and intuitive slide-out menus: The GP-1871F/1971F smart interface, inherited from the NavNet TZtouch2,
features slide-out menus containing all the tools and data you need to be in total control
Display modes customization: Customize your display modes and create the perfect combination to fit your individual needs.
Easy screenshot: Tap the display with 2 fingers to capture a screenshot that will be saved directly to your micro SD card.

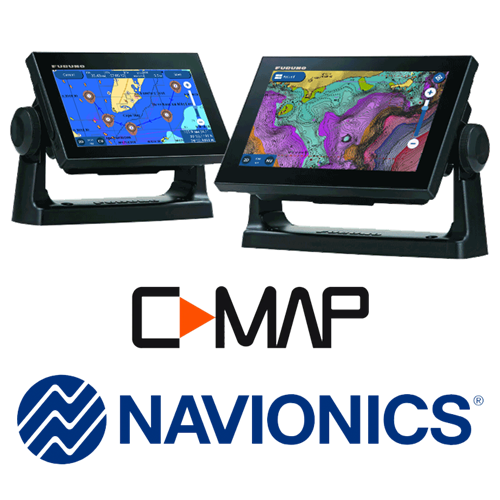

Chart plotter (with internal gps antenna)

The Chart Plotter utilizes full-featured Navionics or C-Map 4D charts.
C-Map 4D empowers you with plenty of useful data that you can overlay onto a rich vector chart, such as relief vectors, tidal streams and marine plans, significantly boosting situational awareness. Creating routes and waypoints is as simple as touch-and-go. When connected to an AIS receiver, you can see valuable AIS data on the display.
With the new Version 4.0 software, Navionics charts with features such as refined depth contouring and relief shading, and enhanced viewing angles, including 3D and Panoramic modes, can be utilized. Plus, users can quickly and easily update the chart content using the Navionics Chart Installer app for PC!

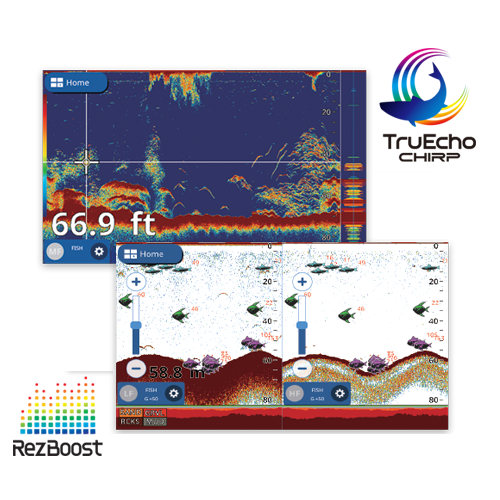

Built-In CHIRP and Conventional Fish Finders

The unit includes a built-in TruEcho CHIRP, as well as a conventional Fish Finder, transmitting at 300W, 600W or 1kW. Simply tell the unit what transducer you are using and it will select the type of Fish Finder to use. The TruEcho CHIRP transmits across a spectrum of frequencies, delivering an incredible amount of detail and clearly marking individual game fish and bait fish. The conventional Fish Finder includes RezBoost data processing for an ultra-crisp, high-resolution picture. Other features include ACCU-FISH fish size assessment, and the highly useful Bottom Discrimination function to help you find the most productive fishing grounds.

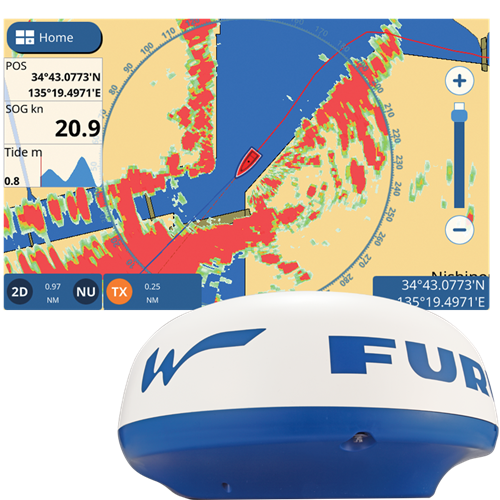

Wireless Radar Connectivity

The radar can be overlayed onto the Chart Plotter display via a wireless connection to the Furuno DRS4W 1st Watch Wireless Radar. The DRS4W’s wireless configuration makes it a breeze to add the compact 19" Radar dome to any vessel. The DRS4W can also display the Radar presentation on a connected smartphone or tablet, offering a major upgrade in safety and versatility.

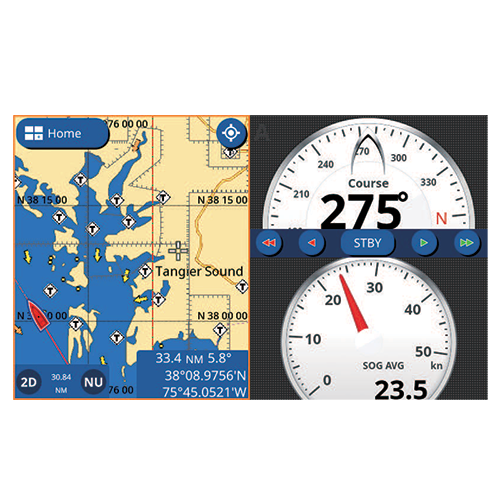

Autopilot Control

Via the CAN bus network interface, The NAVpilot 300 and NAVpilot 711C can be connected to the GP1871F and GP1971F and controlled directly from the Chart Plotter.

Features

GPS/WAAS
Receive Type: GPS 72 channels / WAAS 1 channel
Receiving Frequency L1(1575.42 MHz)
Time to First FIX 100 s approx. (cold start)
Tracking Velocity 999 kn
SBAS(Satellite-based Augmentation System) WAAS, EGNOS, MSAS
Electronic Chart C-MAP 4D and Navionics

ACCURACY
Internal Antenna: GPS:10 m Max, WAAS: 5m Max,
MSAS: 7.5 m Max

DISPLAY
Type GP-1871F: 7" Wide Color TFT LCD
Screen Size GP-1871F: 154 x 85 mm
Screen Resolution WVGA 800 x 480 pixels
Screen Brightness 1000 cd/m2 (typical)
Display Modes: Chart Plotter, Fish Finder, Radar*1, AIS*2, Instruments*3 (Nav Data, Engine, Wind, Fuel tank, Autopilot*4, etc.), GPS status
*1: Connection to the 1st Watch Wireless Radar DRS4W required
*2: Connection to AIS sensor required
*3: Connection to external sensors required
*4: Connection to the FURUNO NAVpilot-300 or 700 series required
Memory Capacity: 30,000 points for ship's track and waypoints 1,000 planned routes (Max. 50 points per route) 5,000 quickpoints

FISH FINDER
Frequency CW: 50/200 kHz, CHIRP: 40 to 225 kHz
Transducer 300 W or 600 W or 1 kW (Transducer dependent)
Range 5-1,200 m, shift: 0-500 m
Modes: TrueEcho CHIRP*, RezBoostTM**, ACCU-FISH**, Bottom Discrimination**, Auto gain (Fishing/Cruising), Manual gain, A-Scope, Marker Zoom, Bottom Zoom, Bottom Lock
* CHIRP dedicated transducer required.
** Dual frequency compatible transducer required.
Picture Advance: 8 steps: x4, x2, 1/1, 1/2, 1/4, 1/8, 1/16, stop

In the box

1 X Plotter
1 X Power cable
1 X Fastener Kit
1 X Stirrup
1 X Wheels
1 X Protective cover
1 X User Manual
1 X Cutting template for embedding

Technical characteristics

Brightness : 1000 cd/m2
Channels : 72
Display : LCD COLOR
Function : REZBOOST or CHIRP
Integrated GPS : 1
Integrated sounder : 1
NMEA0183 : 1
NMEA2000 : 1
Power input : 12/24 V
Resolution : WVGA 800 X 480 Pixels
Screan size : 7
Waterproof : 56 IP
Waypoints : 30 000

Videos

Nouvelle version des combinés traceur sondeur GPS Furuno GP1871F et GP1971F
GP1871F-GP1971F_PRESENTATION

Parts and accessories

00150683000 FRU-NMEA-PMMFF-020 CABLE ASSEMBLY 20S10510 - Replaced by 00153307000 165,11 € With VAT (20%)
200B-5S 200B-5S *10M* SONDE 1KW 200KHz 10M 02S3110-2 396,00 € With VAT (20%)
50/200-1T (RUBBER) Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic 1 219,00 € With VAT (20%)
50B-6 Transducer 1kW 50kHZ 50B-6 *10M* 28 degree Beam Angle ; 6.6 lbs. ; Rubber Coated - Chest, Housing or Tank Mounted ; 10-Meter Cable, no connector provided ; May be used for 75 kHz frequency setting feature, available only FCV1100/1200 and FCV1200BB 349,00 € With VAT (20%)
50B-6B 50B-6B *15M* TRANSDUCER NC
00016716911 CAP-WBDMSMA1 WATERPROOF CAP 19S1212-0 18,53 € With VAT (20%)
ST-02MSB ST-02MSB CAPTEUR TEMP.& VITESSE CONNETTORE 6-PIN 429,00 € With VAT (20%)
ST-02PSB ST-02PSB CAPTEUR TEMP.& VITESS PLASTIC CONNETTORE 6-PIN 249,00 € With VAT (20%)
00125833000 02S4147-2(10-10 6P) 02S4147-2(10-10,6P) 02S4147-2 165,11 € With VAT (20%)
00132193000 22S0191-3 INNER HULL MOUNTING KIT 22S0191-3 - Replaced by 00159544000 221,21 € With VAT (20%)
00014250300 C332 10M CABLE EQUIPE MJ-A10SPF/SRMD-100 390,02 € With VAT (20%)
00150682000 FRU-NMEA-PMMFF-010 CABLE ASSEMBLY 20S10510 - Replaced by 00153306000 92,88 € With VAT (20%)
00001178300 525STID-MSD SONDE 600W SONDE B744 783,48 € With VAT (20%)
00150700000 FRU-NMEA-PMMFF-060 CABLE ASSEMBLY 20S10510 - Replaced by 00153308000 200,04 € With VAT (20%)
00150701000 FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 79,12 € With VAT (20%)
00150703000 FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 46,00 € With VAT (20%)
00150704000 FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 69,00 € With VAT (20%)
00150705000 CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA 82,00 € With VAT (20%)
00150706000 TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 41,00 € With VAT (20%)
00150707000 FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 41,00 € With VAT (20%)
00153306000 CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI NC
00153307000 FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 NC
00153308000 FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI NC
00159544000 22S0191-4 INNER HULL MOUNTING KIT 22S0191-4 652,90 € With VAT (20%)
00001521200 520-5MSD SONDE 600W TH-HULL D+T 10P AF/DF/RB 520-5MSD 406,56 € With VAT (20%)
00001076500 FI-5002 BOITE DE JONCTION NMEA2000 8 PORTS - 179,00 € With VAT (20%)
00001178400 525STID-PWD SONDE TA PLAST. SONDE AF/BD/ (RB) 404,57 € With VAT (20%)
200B-5S 200B-5S TRASDUTTORE 200kHz 1kW CON CAVO DA 10M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003834800 445,32 € With VAT (20%)
50B-6 50B-6 *10M* SONDE 1KW 50KHZ - Replaced by 00003835100 404,57 € With VAT (20%)
50B-6B 50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003835800 369,00 € With VAT (20%)
00001517000 Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic - Replaced by 00003835000 1 333,58 € With VAT (20%)
00001520400 Plastic transducer 600W 50/200kHz (520-5PSD) 229,00 € With VAT (20%)
00002051000 IF-NMEA2K2 CONVERTITORE NMEA 0183/2000 BIDIREZIONALE 1 INGRESSO/USCITA - Replaced by 00003767000 319,00 € With VAT (20%)
00002301900 525T-PWD TRANSDUCER AF/BD/ (RB) 311,44 € With VAT (20%)
00002302000 525T-BSD TRANSDUCER AF/BD/ (RB) 378,38 € With VAT (20%)
00002302100 526TID-HDD SONDE B260 10 PINS TRANSDUCER AF/BD/ (RB) 2 289,98 € With VAT (20%)
00002367600 SS60-SLTD/12 TRANSDUCER 02H100540 844,61 € With VAT (20%)
00002367700 SS60-SLTD/20 TRANSDUCER 02H100550 844,61 € With VAT (20%)
00002367900 525T-LTD/12 TRANSDUCER AF/BD/ (RB) 589,00 € With VAT (20%)
00003767000 IF-NMEA2K2 NMEA DATA CONVERTER 14S147356 CHINA 319,00 € With VAT (20%)
525-5PWD 525-5PWD TRASDUTTORE 600W 50-200kHz CAVO 8M CONN 10-PIN PLASTICA DA POPPA - Replaced by 00003827700 187,33 € With VAT (20%)
00002722600 MB-1100 MATCHING BOX 1kW COLLEGAMENTO TRASD. DUAL LINE - 459,00 € With VAT (20%)
00002704700 IF-NMEAFI CONVERTITORE ANALOG ANALOGICO - NMEA2000 PER DATI FUEL/TANK/VENTO 179,00 € With VAT (20%)
00002689400 T-04MTB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN ACCIAIO DA POPPA 184,03 € With VAT (20%)
00003827700 525-5PWD TRASDUTTORE 600W 50-200kHz CAVO 8M CONN 10-PIN PLASTICA DA POPPA 187,33 € With VAT (20%)
00002367800 525T-LTD/20 TRANSDUCER AF/BD/ (RB) 589,00 € With VAT (20%)
00002689300 T-04MSB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN BRONZO PASSANTE 504,24 € With VAT (20%)
00002368000 520-PLD TRANSDUCER AF/BD/ (RB) P319 / 520-PLD 250,31 € With VAT (20%)
OD-NAD-MM1MF1000G01M CABLE NMEA2000 M/F 1M CERTIFIE 33,00 € With VAT (20%)
OD-NAD-MM1MF1000G02M CABLE NMEA2000 M/F 2M CERTIFIE 47,00 € With VAT (20%)
OD-NAD-MM1MF1000G06M CABLE NMEA2000 M/F 6M CERTIFIE 71,00 € With VAT (20%)
OD-NAD-MM1MF1000G10M CABLE NMEA2000 M/F 10M CERTIFIE 91,00 € With VAT (20%)
OD-NAD-MM1MF1000G20M CABLE NMEA2000 M/F 20M CERTIFIE 141,00 € With VAT (20%)
OD-CPMPCFCSN71 BOUCHON M POUR CONNECTEUR F - 1,08 € With VAT (20%)
OD-CPMPPMCSN71 BOUCHON F POUR CONNECTEUR M - 1,50 € With VAT (20%)
ODSAS1205MFG01M2E90N CABLE NMEA2000 COUDE M/F 1M CERTIFIE 34,00 € With VAT (20%)
ODNAMBM05MCCSLC7G01M CABLE NMEA2000 M/NU 1M CERTIFIE 20,00 € With VAT (20%)
ODNADMM1MF1000G06M CABLE NMEA2000 F/NU 6M CERTIFIE 54,00 € With VAT (20%)
OD-NAT-MM1MF1MF1001 CONNECTEUR T NMEA2000 M/F/F CERTIFIE 30,00 € With VAT (20%)
OD-NAR-MF1000000001 TERMINAISON F NMEA2000 CERTIFIE 12,00 € With VAT (20%)
OD-NAR-MM1000000001 TERMINAISON M NMEA2000 CERTIFIE 14,00 € With VAT (20%)
OD-NAW-MM1MF1MF4001 ADAPTATEUR NMEA2000 MFFFFF CERTIFIE 71,00 € With VAT (20%)
OD-NAW-MM1MF1MF2001 ADAPTATEUR NMEA2000 MFFF CERTIFIE 43,00 € With VAT (20%)
NAVIONICS NAVIONICS NC
00153330000 HGE57AX EXT. GASKET GP-1871F GP-1871F/SMD7 79,12 € With VAT (20%)
00017453210 5400TX-T30H-120 TORQUE DRIVER 75,67 € With VAT (20%)
00019557310 NO.4600(PZ1X75) POZI SCREWDRIVER 67,48 € With VAT (20%)
00019654010 5400TX-T6-80 TORQUE DRIVER 67,48 € With VAT (20%)
00019654210 U.FL-LP-N-2 CONTACT EXTRACTION 161,94 € With VAT (20%)
00153318000 K12CJ2007A MICRO SD CARD LID KIT GP-1X71F/SMD7/9 79,12 € With VAT (20%)
00153319000 CN CAP-WBDMMSA1 NMEA CONNECTOR CAP GP-1X71F/SMD7/9 75,67 € With VAT (20%)
00153320000 K12CJ2008A GP-1871EXTERNAL BRACKET KIT GP-1871F SP - Replaced by 00154666000 120,40 € With VAT (20%)
00153322000 HPC54AX PROTECTIVECOVER GP-1871F SP 136,54 € With VAT (20%)
00153324000 K12CR1008A FLUSH MOUNT KIT GP-1X71F SP 146,06 € With VAT (20%)
00153325000 CBC0FS0810 CABLE ALIMENTATION GP1871F_GP1971F GP-1X71F/SMD7/9 129,00 € With VAT (20%)
00153326000 K12CJ2009A BACK COVER GP-1871F/SMD7 110,08 € With VAT (20%)
00153328000 K0G71E0000 FISH FINDER BOARD ASSY GP-1X71F/SMD7/9 586,22 € With VAT (20%)
00153329000 K12CJ2010A SET OF SCREWS GP-1X71F/SMD7/9 79,12 € With VAT (20%)
00153336000 K12CJ2011A W/LCD FRONT PANEL ASSY GP-1871F SP 822,37 € With VAT (20%)
00153332000 K0G60E0000 MAIN MAIN BOARD GP-1871F ASSY GP-1871F SP 1 005,74 € With VAT (20%)
00153334000 CBFFC-050D34040 MB-TO-FF BOARDS FFC GP-1X71F/SMD7/9 99,76 € With VAT (20%)
00153335000 CB66FA0200 MB POWER CABLE GP-1X71F/SMD7/9 82,56 € With VAT (20%)
00155046000 VTATM4.8X22TCCINX SCREW BRACKET MOUNT SMD7/9GP1X71FSP 43,66 € With VAT (20%)
00155045000 HGB16AX GASKET FLUSH MOUNT SMD7/GP1871F SP 63,50 € With VAT (20%)
00154666000 K12CJ2015A ETRIER POUR GP1871F EXTERNAL BRACKET KIT 89,00 € With VAT (20%)
00153345000 NEWPEC AND9**.** NEWPEC JAPAN JHA-NP SD CARD GP-1X71F/SMD7/9 203,21 € With VAT (20%)
00153343000 PACKGP-1871 INT PAD FOR HANGER GP-1871F/SMD7 67,48 € With VAT (20%)
00153342000 PACKGP-F.TO3 INT ACCESSORY BOX GP-1X71F/SMD7/9 63,50 € With VAT (20%)
00153341000 PACK2XGP-KISS MASTER CARTON X2 BOXES GP-1X71F/SMD7/9 116,95 € With VAT (20%)
00153340000 PACKGP-1X71 FUR EXTERNAL BOX GP-1X71 SP 82,56 € With VAT (20%)
00153338000 K12CJ2012A W/PCB&PNL LCD ASSY GP-1871F SP 1 495,00 € With VAT (20%)
