GP33

GPS single function with display Ref : IMD02924001

GPS WAAS LCD 4,5'' Colour - Interface NMEA0183 & 2000

PRICE : 699,00 € With VAT (20%)

Find a dealer

Description

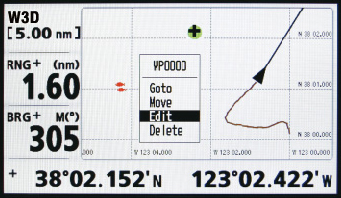

Easy operation

On GP33, innovative digital graphic displays and intuitive on-screen menu structure provide simple operation and easy access to the features you use most frequently.

CAN bus on GP33

CAN bus is a communication protocol that shares multiple data and signals through a single backbone cable. You can simply connect any CAN bus devices onto the backbone cable to expand your network onboard. With CAN bus, IDs are assigned to all the devices, and the status of each sensor in the network can be detected. All the CAN bus devices can be incorporated into the NMEA2000 network.

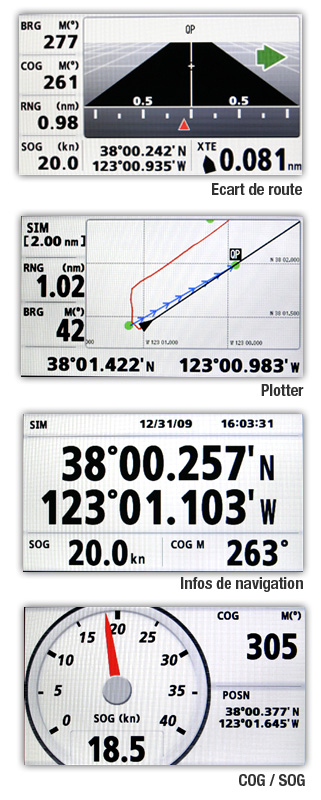

Various Displays

The GP-33 provides navigation data and displays them in a wide variety of numerical and graphical formats. You may freely select which data you want displayed with easy to use controls. The combination of a high resolution screen and large data fields makes the screen easy to read in almost any condition.

Product advantages

Compact in size, yet big on features and performance, the FURUNO GP-33 is the perfect GPS navigator for a wide range of vessels. This advanced unit provides accurate and reliable position fixing, thanks to a super sensitive, 12-channel GPS receiver combined with integrated SBAS (WAAS/EGNOS/MSAS) technology.

Features

4.3" "Sunlight Viewable" color LCD
(Brightness: 700 cd/m2 typical)
Enhanced data legibility thanks to large characters and high resolution visual aid
Stores up to 10,000 marks/waypoints, 100 routes and 3,000 track points
7 display modes available, including 2 user-customized modes
Supports both NMEA0183 and CAN bus interface
Contact closure capability available on the 10P connector
SBAS capable for better measurement

In the box

1 X GPS Antenna GP33 with antenna cable, 10m
1 X Scree
1 X Protective cover
1 X Caliper
2 X Wheels
1 X Installation joint
1 X CANBUS cable, 6m
1 X Cutting template for embedding
1 X Installation kit
1 X Simplified user guide laminated (multilingual)
1 X User Manual
1 X Installation manual
1 X CANBUS Installation Guide

Technical characteristics

Channels : 12
Integrated GPS : 1
NMEA0183 : 1
NMEA2000 : 1
Power input : 12/24 V
Resolution : 480 x 272 Pixels
Screan size : 4.2
Type : WAAS/EGNOS
Waterproof : 56 IP
WheelMarked : No

Videos

A Guided Tour of the Furuno GP33
