MODEL 1835
Radars M series Ref : IMD0288401310.4" LCD RADAR
PRICE : 5 604,00 € With VAT (20%)Description
MODEL 1835 : Bringing a new level of quality, operability and reliability into marine radars
The MODEL1835 Radar is a high contrast 10.4" color LCD radar designed for a wide range of vessels including pleasure craft, fishing boats and work boats. This new radar offers crystal clear target presentation with automatic Gain/Sea/Rain controls to deliver noise-free radar presentation. It features superb detection of even small targets both at short and long range. It also boasts all-new display modes which will assist you with navigating safely on all waters.
Product advantages
Easy-to-install 10.4" portrait color LCD (350 cd) display
Bonded LCD provides clear view in all weather conditions

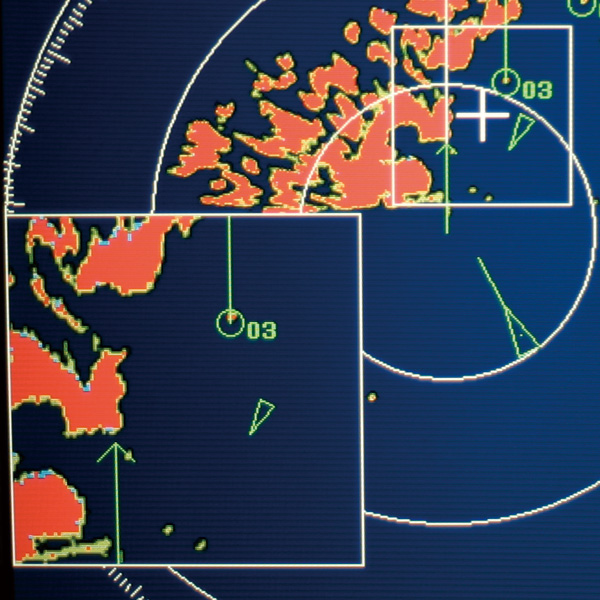

Stable AIS/TT target-tracking with zoom display function
Full Screen Mode lets operators observe a wider range around the vessel
Enhanced auto tuning/gain/anti-clutter controls
Echoes in yellow, green, orange or multiple colors
In the box
1 X Display unit rdp-152-e
1 X Radome antenna unit rsb-0071-057
Installation materials including antenna cable and spare parts
Technical characteristics
Brightness : 350 cd/m2
Diameter : 124 mm
Function : ARPA Option (ARP11)
NMEA0183 INPUT : 2
NMEA0183 OUTPUT : 2
Power : 4k W
Power input : 12/24 V
Range : 36 NM
Resolution : 640 x 480 Pixels
Screan size : 10.4
Size : 60 cm
Type : Radome
Waterproof : 55 IP
Weight : 8 Kg
Parts and accessories
| 00003009700 | OP03-21 BUZZER ALLARME RADAR CICALINO ALLARME ESTERNO OP03-21 | 102,96 € With VAT (20%) |
| 00001348600 | PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT | 826,56 € With VAT (20%) |
| 00852305000 | ARPA 10 targets | 729,00 € With VAT (20%) |
| 00014788112 | MJ-B24LPF0010-200+R CABLE EQUIPE SIGNAL 20M REMOTE DISPLAY - Replaced by 00140967000 | 753,48 € With VAT (20%) |
| 00015402810 | MJ-A7SPF0007-050C | 109,00 € With VAT (20%) |
| 00107460010 | MJ-A10SPFW0001+R CAVO BUZZER PER BUZZER ALLARME ESTERNO PER RADAR M1835/1935 | 99,84 € With VAT (20%) |
| 00015969510 | MJ-A6SPF0007-100C MJ-A6SPF0007-100C 22S0270-2 | 109,20 € With VAT (20%) |
| 00140951000 | MJ-B24LPF0002-100+R MJ-B24LPF0002-100+R 88S0089-1 | 210,00 € With VAT (20%) |
| 00140952000 | MJ-B24LPF0002-150+R | 270,00 € With VAT (20%) |
| 00140953000 | MJ-B24LPF0002-200+R | 294,00 € With VAT (20%) |
| 00140954000 | MJ-B24LPF0002-300+R | 396,00 € With VAT (20%) |
| 00001617400 | RDP-152-1835-E DISPLAY | NC |
| 00001824900 | RSB-0071-057A ANTENNA 4kW 1835 ANTENNA RADOME UNIT M-1835 - | NC |
| 00124305000 | MD9208/03P9317A(LF) PRINTED CIRCUIT BOARD CHINA M1832/35/ | 822,37 € With VAT (20%) |
| 10034791210 | 03-176-1003-2 RUBBER KEY (E) COATING | 111,13 € With VAT (20%) |
| 00847656000 | RSB-0071-057/57A/58 RADOME UPPER ASSEMBLY M1832/1731MK3 | 497,71 € With VAT (20%) |
| 00847657000 | RSB-0071-057/58 RADOME LOWER ASSEMBLY M1832/1731MK3 | 497,71 € With VAT (20%) |
| 00847661000 | RSB-0071-057/58 ANTENNA RADIATOR ASSEMBLY MODEL1832 | 805,70 € With VAT (20%) |
| 00855814000 | IF-9214A(LF) PRINTED CIRCUIT BOARD M-1832/FR-7062 | 852,94 € With VAT (20%) |
| 10034171110 | 02-157-1002-1 PANEL LID - | 23,15 € With VAT (20%) |
| 00114431000 | RU-9792A MIC ASSEMBLY RTR-057A | 1 175,22 € With VAT (20%) |
| 00112219000 | 03P9522(LF) IF PRINTED CIRCUIT BOARD RTR057A/59A/64A | 1 189,12 € With VAT (20%) |
| 00108783000 | E3571 MAGNETRON 03S9320-5 | 636,23 € With VAT (20%) |
| 00106318000 | NL6448BC33-64F W/FIL LCD WITH GLASS FILTER - - Replaced by 00137893000 | 2 382,98 € With VAT (20%) |
| 00106308000 | gp39 PLATINE SPU (OLD) RDP-152 (CCFL LCD) | 3 152,18 € With VAT (20%) |
| 00106305000 | RDP-152 BZL FRONT BEZEL ASSEMBLY - | 302,70 € With VAT (20%) |
| 00106303000 | RDP-152 CONTROL KNOB CONTROL KNOB ASSEMBLY - | 63,50 € With VAT (20%) |
| 00102645000 | KNOB(N2.5) KNOB MFDBB | 43,66 € With VAT (20%) |
| 00015799510 | MJ-A3SPF0017-050ZC CABLE ASSEMBLY 03S9332-2 - Replaced by 00159720000 | 229,93 € With VAT (20%) |
| 00014788012 | MJ-B24LPF0010-100+R CABLE EQUIPE SIGNAL 10M REMOTE DISPLAY - Replaced by 00140966000 | 575,11 € With VAT (20%) |
| 00014052212 | RM9087A MOTOR 03S9404-3 - Replaced by 00014052213 | 250,31 € With VAT (20%) |
| 00014051310 | RK117111400X POTENTIOMETER 02S4978-0 | 37,04 € With VAT (20%) |
| 00013897900 | RU-9360 MIC M1832 | 727,92 € With VAT (20%) |
