GP1971F

Chartplotter-Ecoscandaglio Ref : IMD03489000

Chartplotter Multitouch 9" con ecoscandaglio chirp

PRIX : 1 499,00 € TTC (20%)

Descriptif

Ecoscandaglio integrato TrueEcho CHIRP

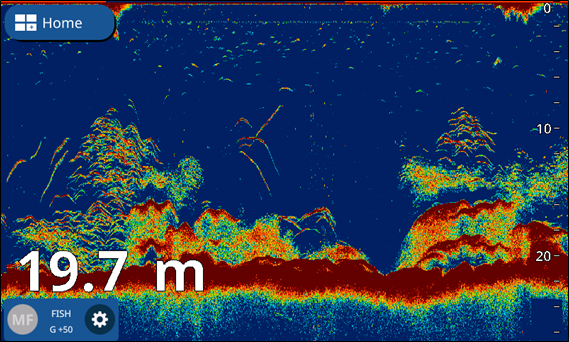

Immagine della TrueEcho CHIRPTM (con trasduttore da Airmar TM150M)

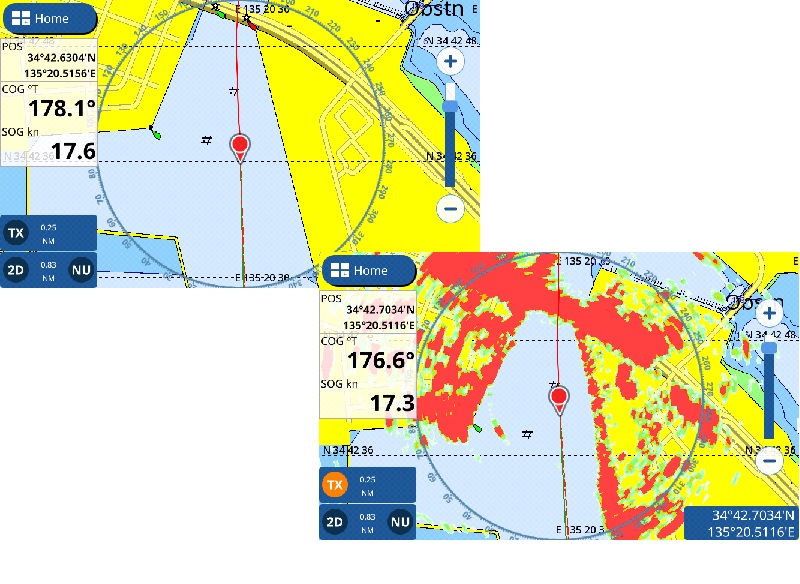

Immagine del Radar

Cartgrafia C-MAP 4D

Il plotter GP1971F è compatibile unicamente con cartografia C-MAP 4D su supporto micro SD. Sono disponibili tre tagli di coperture: Local, Wide e Continental. La cartografia da accesso ad una serie di funzioni aggiuntive tra cui: Immagine 3D, foto satellitari, Cartografia Raster e Vettoriale, modalità Easy Routing e scarico dati meteo gratuito C-Weather

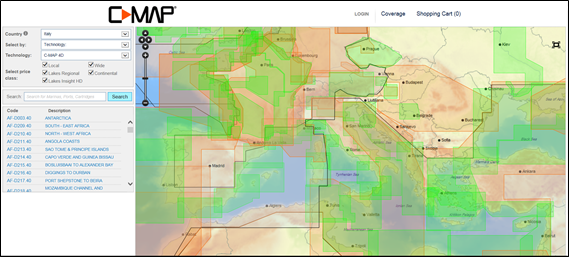

Le coperture C-MAP 4D, Local (verde) o Wide (arancio)

Interfaccia grafica

L’interfaccia grafica utente dei chart plotter GP1871F/1971F è molto semplice e intuitiva ed è basata sulla serie Furuno Navnet TZT2. Le modalità operative sono perfettamente personalizzabili con tre finestre e 5 tipi delle schermate: Plotter cartografico, Ecoscandaglio, Radar, Dati di navigazione  e Autopilota. La funzione “Edge-Swipe” garantisce all’utente un facile accesso ai Menù laterali a scomparsa attivabili dai quattro bordi dello schermo.

Immagine del GUI

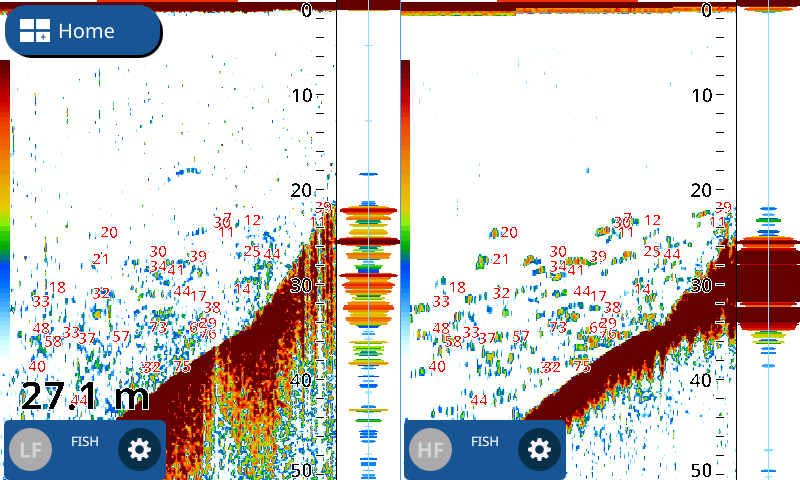

Modalità REZBOOST

La funzione RezBoost è disponibile unicamente con se si utilizza il modulo ecoscandaglio tradizionali a doppia frequenza 50 e 200 kHz di potenza 600W/1 Kw. Questa modalità consente di sfruttare appieno le caratteristiche del trasduttore monotono per una immagine ad alta risoluzione. E' possibile beneficiare inoltre della funzione ACCU-FISH per determinare la dimensione del pesce e la discriminazione del fondale Bottom Discrimination

rez

Caracteristiques techniques

Alimentazione : 12/24 V
Canalli : 72
Display : LCD COLOR
Ecoscandaglio integrato : 1
Funzione : REZBOOST or CHIRP
GPS integrato : 1
Impermeabilita : 56 IP
Luminosita : 1000 cd/m2
NMEA0183 : 1
NMEA0183 INPUT : 1
NMEA2000 : 1
NMEA2000 INPUT : 1
Risoluzione : WVGA 800 X 480 Pixels
Schermo Dimensione : 9 "
Waypoints : 30 000


Videos


Pieces et accessoires

SW-SP2P SP2P POD NON DECOUPE SURFACE MAX UTILE : 298x177 399,10 € TTC (20%)
SW-SP2S SP2S POD NON DECOUPE SURFACE MAX UTILE : 298x177 420,73 € TTC (20%)
00126602000 CABLE ASSEMBLY FRU-3P-FF-20M 172,00 € TTC (20%)
SW-SM-18-U SM-18-U PLATEFORME DE MAT POUR RADAR DE 38/45 CM 387,70 € TTC (20%)
P319 Transducer 600W True Hull Plastic 50/200kHz, bi-function P & T 145,00 € TTC (20%)
B60-12 B60 12 SONDE TRBRONZE 600W 50-200KHZ/P-T/XID/10M 320,00 € TTC (20%)
B60-20 B60 20 SONDE TR BRONZE 600W 50-200KHZ/P-T/XID/10M 320,00 € TTC (20%)
SS60-12 SS60-12 SONDE TR INOX 600W 50-200KHZ/P-T/XID 10M 450,00 € TTC (20%)
B45 Thru Hull transducer 600W 50/200 kHz Bronze 2 functions (B45) 222,00 € TTC (20%)
B744V Transducer True-Hull 600W Bronze 50/200kHz 3 functions 395,00 € TTC (20%)
B744VL Tranducer True-Hull 600W Bronze 50/200kHz 3 Functions 570,00 € TTC (20%)
520-5PSD Plastic transducer 600W 50/200kHz (520-5PSD) 189,00 € TTC (20%)
B260 Transducer True-hull 1kW Bronze 50/200 kHz 2 functions 1 600,00 € TTC (20%)
M260 Transducer In-Hull 1000W 50/200 kHz 1 182,00 € TTC (20%)
TM260 TM260 SONDE TA LAST. 1KW 50-200KHZ/P-T/XID 10M - Remplace par AI-41-404-1-03 1 338,00 € TTC (20%)
00003374300 GC-001 COMMANDE GESTUELLE DEPORTEE 332,00 € TTC (20%)
00002722600 MATCHING BOX MB-1100 374,00 € TTC (20%)
00001076500 JUNCTION BOX FI-5002 8PORTS - FI70/FI50/NN3D/PG700 155,00 € TTC (20%)
TM150M TM150M DT TRASND PLAST CHIRP 95-155KHZ/300W/12M/10B GP1X71F 395,00 € TTC (20%)
B150M Chirp transducers operating at a frequency range of 95-155 kHz300W, THRU HULL, Bronze - Remplace par AI-31-836-1-02 565,00 € TTC (20%)
B75L B75L 0 DT SONDE TR BR CHIRP 40-75KHZ/300W/9M/10B GP1X71F - Remplace par AI-41-549-2-01 895,00 € TTC (20%)
B75M B75M 0 DT SONDE TR BR. CHIRP 80-130KHZ/600W/9M/10B GP1X71F - Remplace par AI-41-551-2-01 1 095,00 € TTC (20%)
B75H B75H 0DT SONDE TR BRONZE CHIRP 130-210HZ/600W/9M/10B GP1X71F - Remplace par AI-41-554-2-01 995,00 € TTC (20%)
SS75M SS75M 0 DT SONDE TR INOX CHIRP 80-130KHZ/600W/9M/10B GP1X71F - Remplace par AI-31-793-2-01 995,00 € TTC (20%)
SS75H SS75H DT SONDE TR INOX CHIRP 130-210KHZ/600W/9M/10B GP1X71F - Remplace par AI-31-790-2-01 995,00 € TTC (20%)
B175L B175L DT TRANSD TR BR CHIRP 40-60KHZ/1KW/9M/10B GP1X71F - Remplace par AI-41-561-2-01 1 755,00 € TTC (20%)
B175H B175H 0 DT SONDE TR BR CHIRP 130-210KHZ/1KW/9M/10B GP1X71F - Remplace par AI-41-567-2-01 1 355,00 € TTC (20%)
TM185HW TM185HW DT SONDE TA PLAS CHIRP 1KW/9M/10B - Remplace par AI-41-936-1-01 NC
MKT-SUPPORT-GP1971F PRESENTOIR GP1971F PVC RIGIDE 7,80 € TTC (20%)
MKT-TOTEM-GP1971F TOTEM GP1971F PVC RIGIDE 168,00 € TTC (20%)
MKT-ALIM ALIMENTATION 220V-12V POUR GP1971F ET GP1871F 12,00 € TTC (20%)
50B-6B TRANSDUCER 50B-6B -15M NC
520-5MSD TRANSDUCER 520-5MSD 406,56 € TTC (20%)
00002368000 520-PLD TRANSDUCER NC
50/200-1T Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic 1 050,00 € TTC (20%)
50B-6 50B-6 *10M* SONDE 1KW 50KHZ 310,00 € TTC (20%)
00002367600 SS60-SLTD/12 TRANSDUCER NC
00132193000 22S0191-3 INNER HULL MOUNTING KIT NC
200B-5S TRANSDUCER 200B-5S - 10M NC
00002689300 T-04MSB T-04MSB 504,24 € TTC (20%)
00116416010 ST-02PSB CAPTEUR TEMP.& VITESS ST-02PSB 210,00 € TTC (20%)
00116415010 ST-02MSB SPEED/TEMPERATURE SENSOR 398,33 € TTC (20%)
00002367700 SS60-SLTD/20 TRANSDUCER NC
00001178300 525STID-MSD SONDE NC
00125833000 02S4147-2(10-10,6P) CABLE ASSY (FOR ST SENSOR) 145,73 € TTC (20%)
525-5PWD TRANSDUCER 525-5PWD TRANSDUCER NC
00001178400 525STID-PWD SONDE NC
00150706000 TERMINATION RESISTOR(MICRO) TERMINATION MICRO5C F 16,50 € TTC (20%)
00150701000 FRU-NMEA-PFF-010 CABLE ASSEMBLY NC
00150703000 FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 51,00 € TTC (20%)
00150704000 FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M NC
00153306000 FRU-NMEA-PMMFF-010 NMEA2000 MICRO5C DROITE M/F 1M NC
00150682000 FRU-NMEA-PMMFF-010 CABLE ASSEMBLY NC
00153307000 FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M NC
00150683000 FRU-NMEA-PMMFF-020 CABLE ASSEMBLY NC
00150700000 FRU-NMEA-PMMFF-060 CABLE ASSEMBLY NC
00150705000 MICRO T CONNECTOR MICRO T-CONNECTOR 69,00 € TTC (20%)
00153308000 FRU-NMEA-PMMFF-060 NMEA2000 MICRO5C DROITE M/F 6M NC
00002301900 525T-PWD TRANSDUCER NC
00002302000 525T-BSD TRANSDUCER NC
00002367900 525T-LTD/12 TRANSDUCER NC
00002367800 525T-LTD/20 TRANSDUCER NC
00002689400 T-04MTB T-04MTB 184,03 € TTC (20%)
00016716911 CAP-WBDMSMA1 WATERPROOF CAP 7,51 € TTC (20%)
00002302100 526TID-HDD TRANSDUCER NC
00002704700 ANALOG CONVERTER IF-NMEAFI NMEA DATA 155,00 € TTC (20%)
00002051000 IF-NMEA2K2 NMEA2000/NMEA0183 converter 270,00 € TTC (20%)
00014250300 C332 10M CABLE EQUIPE NC
00150707000 FRU-MM1000000001 TERMINATION RESISTOR(MICRO) NC
OD-STARTER-KIT KIT DE DEMARRAGE NMEA2000 CERTIFIE NC
CM-SD4D-4DL CARTE PROGRAM. CMAP LOCALE 4D+ Micro SD NC
CM-SD4D-4DW CARTE PROGRAMMEE CMAP WIDE 4D+ Micro SD NC
00003543700 GP-1971F-E GPS/WAAS CHART PLOTTER NC
DRS4W ANTENNA RADAR WIFI RADOME 4 kW - Remplace par IMD03439004 1 585,00 € TTC (20%)
NAVPILOT300 Autopilota LCD Colori 4.1" con Telecomando - Remplace par IMD03230003 1 760,00 € TTC (20%)
FI70 Strumentazione LCD a colori 4.1" 530,00 € TTC (20%)
00153340000 PACKGP-1X71 FUR EXTERNAL BOX 68,89 € TTC (20%)
00153337000 K12CR1010A W/LCD FRONT PANEL ASSY 983,00 € TTC (20%)
00153339000 K12CR1011A W/PCB&PNL LCD ASSY 1 945,25 € TTC (20%)
00153345000 NEWPEC AND9**.** NEWPEC JAPAN JHA-NP SD CARD 177,53 € TTC (20%)
00153341000 PACK2XGP-KISS MASTER CARTON X2 BOXES 100,46 € TTC (20%)
00153342000 PACKGP-F.TO3 INT ACCESSORY BOX 46,37 € TTC (20%)
00153344000 PACKGP-1971 INT PAD FOR HANGER 46,37 € TTC (20%)
00153334000 CBFFC-050D34040 MB-TO-FF BOARDS FFC 83,24 € TTC (20%)
00153335000 CB66FA0200 MB POWER CABLE 68,89 € TTC (20%)
00153319000 CN CAP-WBDMMSA1 NMEA CONNECTOR CAP 69,55 € TTC (20%)
00153333000 K0G60E0100 MAIN MAIN BOARD GP-1971F ASSY 1 108,20 € TTC (20%)
00153323000 HPC53AX PROTECTIVECOVER 116,58 € TTC (20%)
00153331000 HGE56AX EXT. GASKET GP-1971F 66,02 € TTC (20%)
00153318000 K12CJ2007A MICRO SD CARD LID KIT 66,02 € TTC (20%)
00153321000 K12CR1007A GP-1971EXTERNAL BRACKET 103,33 € TTC (20%)
00153324000 K12CR1008A FLUSH MOUNT KIT 124,54 € TTC (20%)
00153325000 POWER CABLE FOR GP-1X71F CBC0FS0810 140,42 € TTC (20%)
00153327000 K12CR1009A BACK COVER 120,55 € TTC (20%)
00153328000 K0G71E0000 FISH FINDER BOARD ASSY 523,96 € TTC (20%)
00153329000 K12CJ2010A SET OF SCREWS 66,02 € TTC (20%)
00155046000 VTATM4.8X22TCCINX SCREW BRACKET MOUNT NC
00155048000 HGB15AX GASKET FLUSH MOUNT NC
00017453210 5400TX-T30H-120 TORQUE DRIVER NC
00019557310 NO.4600(PZ1X75) POZI SCREWDRIVER NC
00154667000 K12CR1014A EXTERNAL BRACKET KIT NC
OMFR-910 MU GP1871F GP1971F Manuel d'utilisation Francais NC
